(5-26) - STEERING CYLINDER ASSEMBLY, STEERABLE FRONT AXLE

Запчасти Case IH 9130 (5-26) - STEERING CYLINDER ASSEMBLY, STEERABLE FRONT AXLE (05) - STEERING

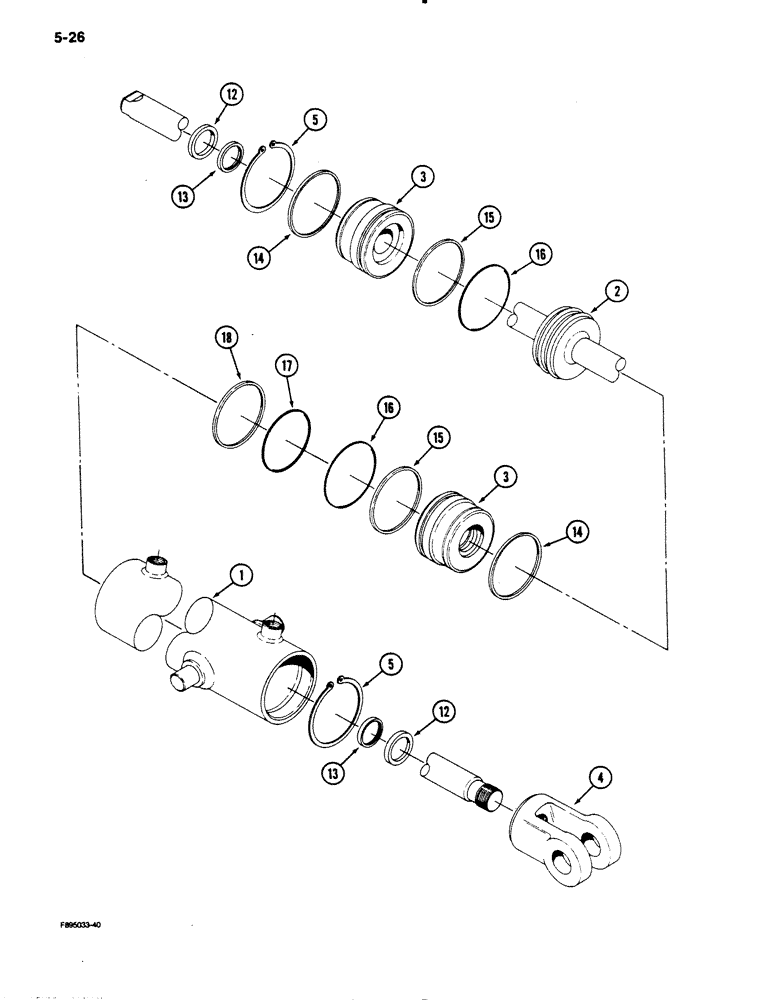

Схема запчастей Case IH 9130 - (5-26) - STEERING CYLINDER ASSEMBLY, STEERABLE FRONT AXLE (05) - STEERING
12
13
13
5
16
3
12
1
14
14
15
3
2
17
15
4
16
5
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50-3046T91

CYLINDER

ASSEMBLY - steering, front, Includes: Ref. 1 - 18

1шт.

1

33-1382T1

SLEEVE CYLINDER

BARREL - cylinder

1шт.

2

33-1034T1

ROD

- cylinder, with piston

1шт.

3

33-1032T1

GUIDE

- rod

2шт.

4

33-1035T1

END

- rod

1шт.

5

33-1036T1

RING, SNAP

RING - snap

2шт.

33-1037T1

SEAL

KIT - seal

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - wiper

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - rod

2шт.

14

NSS

NOT SOLD SEPARAT

RING - lock

2шт.

15

NSS

NOT SOLD SEPARAT

RING - back-up, rod guide

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING - seal, rod guide

2шт.

17

NSS

NOT SOLD SEPARAT

O-RING - seal, piston

1шт.

18

NSS

NOT SOLD SEPARAT

RING - slipper, piston

1шт.
