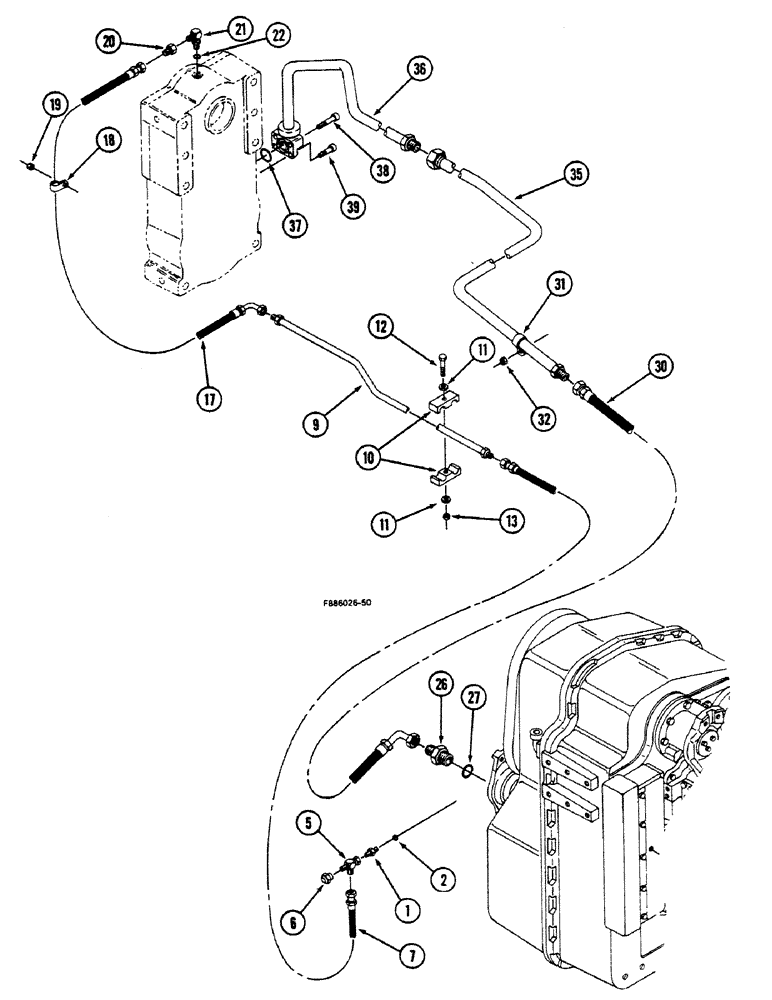

Запчасти Case IH 9150 (6-052) - TRANSMISSION LUBRICATION, TRANSMISSION TO PTO TRANSFER CASE, IF EQUIPPED (06) - POWER TRAIN

1

31-432

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, 9/16 x 3/4 inch thread, Includes: Ref. 2

1шт.

2

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

31-1355

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4 x 3/4 x 3/4 inch thread

1шт.

6

218-755

CAP,37 Degree, 3/4"-16

1шт.

7

31-2669

HOSE ASSY.

HOSE - transmission to transfer case, 28 inch

1шт.

9

90-6635T1

TUBE,0.625" OD x 46.75" L

- transfer case lube

1шт.

10

50-2531T1

CLAMP

- tube, halves

4шт.

11

19-106

WASHER,5/16", SAE

- flat, 5/16 x 7/8 x 1/16 inch

4шт.

12

19-8

BOLT,5/16" - 18 x 1 1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

13

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

17

31-2668

HOSE ASSY.

HOSE - lube pump to tube, 4 inch

1шт.

18

32-302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

3шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

20

31-2537

FITTING

CONNECTOR - orificed

1шт.

21

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, 3/4 x 3/4 inch thread, Includes: Ref. 22

1шт.

22

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

26

31-2659

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR - straight, 1-5/8 x 1-5/16 inch thread, Includes: Ref. 27

1шт.

27

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

30

31-2682

HOSE ASSY.

HOSE - return, transfer case to transmission, 39 inch

1шт.

31

31-1348

CLAMP

- hose

1шт.

32

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex lock, 3/8 inch NC

1шт.

35

90-6630T1

TUBE,1.25" OD

- return

1шт.

36

90-5898T2

TUBE,1.25" OD

ASSEMBLY - transfer case return

1шт.

37

31-1925

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/2 x 9/64 inch

1шт.

38

19-6217

SCREW,Hex Skt, 7/16" - 14 x 1 1/4", Gr 8

BOLT - socket head, 7/16 NC x 1-1/4 inch, grade 8

2шт.

39

19-6209

HEX SOC SCREW,7/16"-14 x 2 1/4"

BOLT - socket head, 7/16 NC x 2-1/4 inch, grade 8

2шт.
