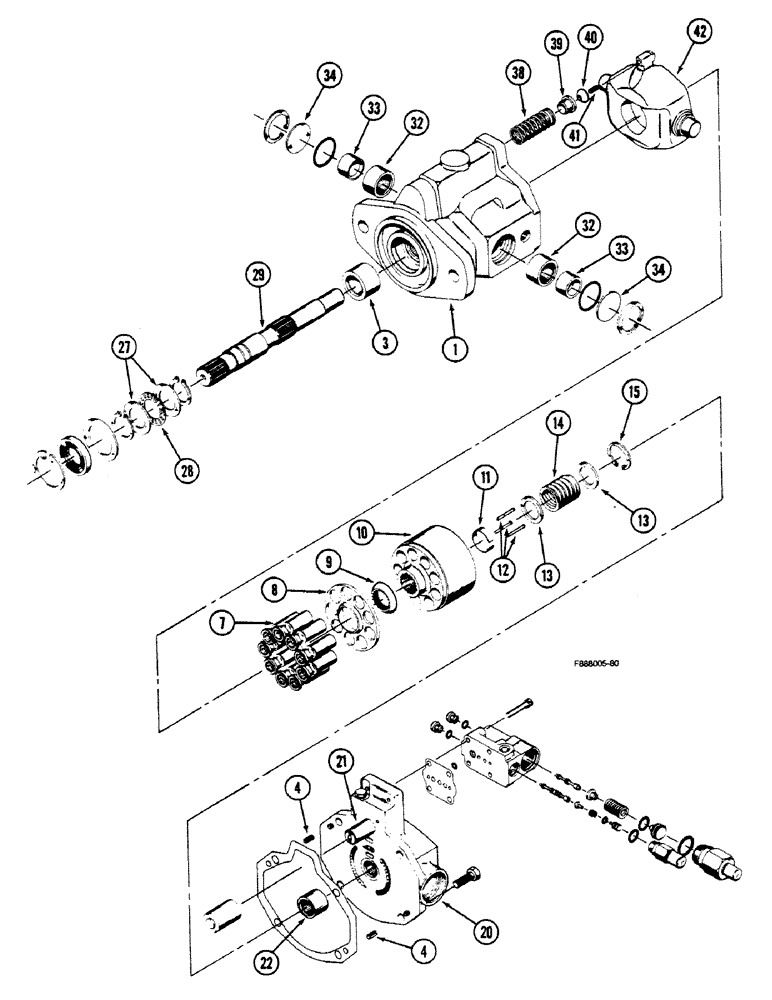

Запчасти Case IH 9150 (8-12) - HYDRAULIC PISTON PUMP ASSEMBLY (08) - HYDRAULICS

50-2664T91

PUMP

ASSEMBLY - piston, Includes: Ref. 1 - 42, 47 - 87 on Fig. 8-14 and housing assembly

1шт.

50-2664T91R

REMAN-HYD PUMP

9150 (PRIOR TO S/N JCB0003600) (12/86-6/89)

1шт.

50-2664T91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

50-2791T91

HOUSING ASSY.

HOUSING ASSEMBLY - pump, Includes: Ref. 1, 3 and 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

3

50-2792T1

BEARING

- roller

1шт.

4

50-2806T1

PIN

- roll

2шт.

50-2801T1

CYLINDER

ROTATING KIT - piston, Includes: Ref. 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY

9шт.

8

NSS

NOT SOLD SEPARAT

PLATE - shoe

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - spherical

1шт.

10

NSS

NOT SOLD SEPARAT

BLOCK - cylinder, piston

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - pin

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - block

3шт.

13

NSS

NOT SOLD SEPARAT

WASHER - spring

2шт.

14

NSS

NOT SOLD SEPARAT

SPRING - block

1шт.

15

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

50-2804T91

PLATE

ASSEMBLY - back, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE - back

1шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - pin

1шт.

22

50-2805T1

ROLLER BEARING

- roller

1шт.

27

50-2788T1

RING RACE

WASHER - bearing, thrust

2шт.

28

50-2789T1

THRUST BEARING

- thrust

1шт.

29

50-2790T1

SHAFT

- drive, pump

1шт.

32

50-2793T1

BEARING

- roller

2шт.

33

50-2794T1

RING RACE

RACE - inner, bearing

2шт.

34

50-2796T1

COVER

- trunnion

2шт.

38

50-2798T1

SPRING

- cam plate

1шт.

39

50-2799T1

COLLAR

- spring

1шт.

40

50-1793T1

BUTTON

- pivot

1шт.

41

50-1794T1

PIN

- roll

1шт.

42

50-2800T1

PLATE

- cam

1шт.
