(2-52) - BLOCK HEATER, L-10 ENGINES

Запчасти Case IH 9150 (2-52) - BLOCK HEATER, L-10 ENGINES (02) - ENGINE

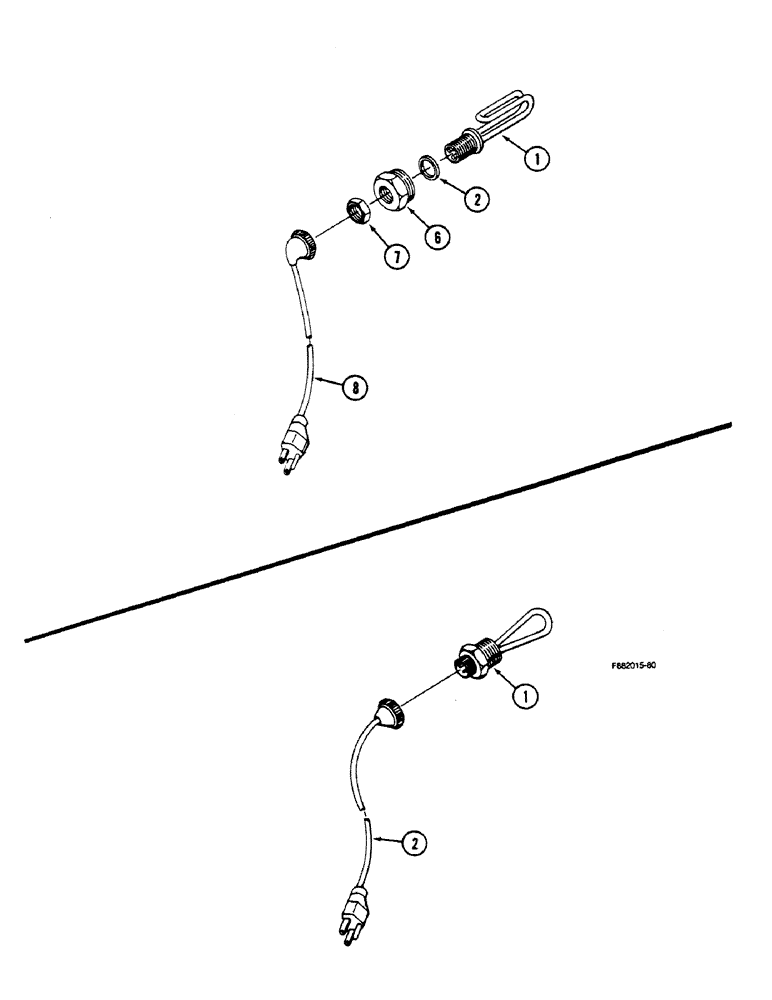

Схема запчастей Case IH 9150 - (2-52) - BLOCK HEATER, L-10 ENGINES (02) - ENGINE
4
1
2
7
6
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

90-3648T91

GLOW PLUG

HEATER ASSEMBLY - coolant, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - heater

1шт.

6

NSS

NOT SOLD SEPARAT

REDUCER - heater

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - hex, jam

1шт.

8

90-3491T1

CABLE

- heater

1шт.

1-5649

HEATER

ASSEMBLY - coolant (Order 35-1093 kit), 3306 engine, Includes: Ref. 1 and 2

1шт.

1

1-5615

HEATER

ELEMENT - heater (Order 35-1093 kit), 3306 engine

1шт.

2

1-5604

ROPE

CABLE - heater, 3306 engine

1шт.

35-1093

HEATER

KIT - engine coolant, 3306 engine

1шт.
