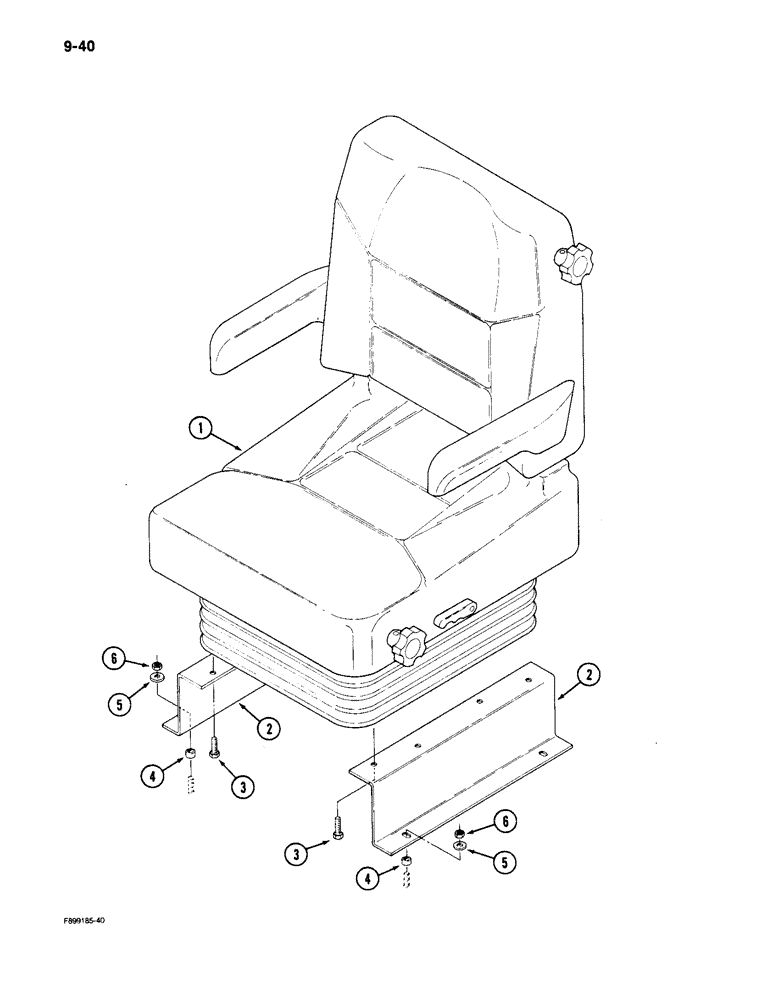

Запчасти Case IH 9150 (9-40) - SEAT MOUNTING, AIR RIDE AND MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY - air ride or mechanical suspension (See Figures 9-42 - 9-54)

1шт.

2

60-6310T1

MOUNTING PARTS

BRACKET - seat mounting

2шт.

3

40-1090

CAPSCREW,Hex, M8 x 1.25 x 20mm, Gr 8.8

BOLT - hex, 8 mm - 1.25 x 20 mm

4шт.

4

19-5724

SPACER

- seat mounting

4шт.

5

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

6

19-508

LOCK NUT

- hex lock, 5/16 inch NC

4шт.
