(4-08) - OVERHEAD CAB HARNESS, ROPS

Запчасти Case IH 9150 (4-08) - OVERHEAD CAB HARNESS, ROPS (04) - ELECTRICAL SYSTEMS

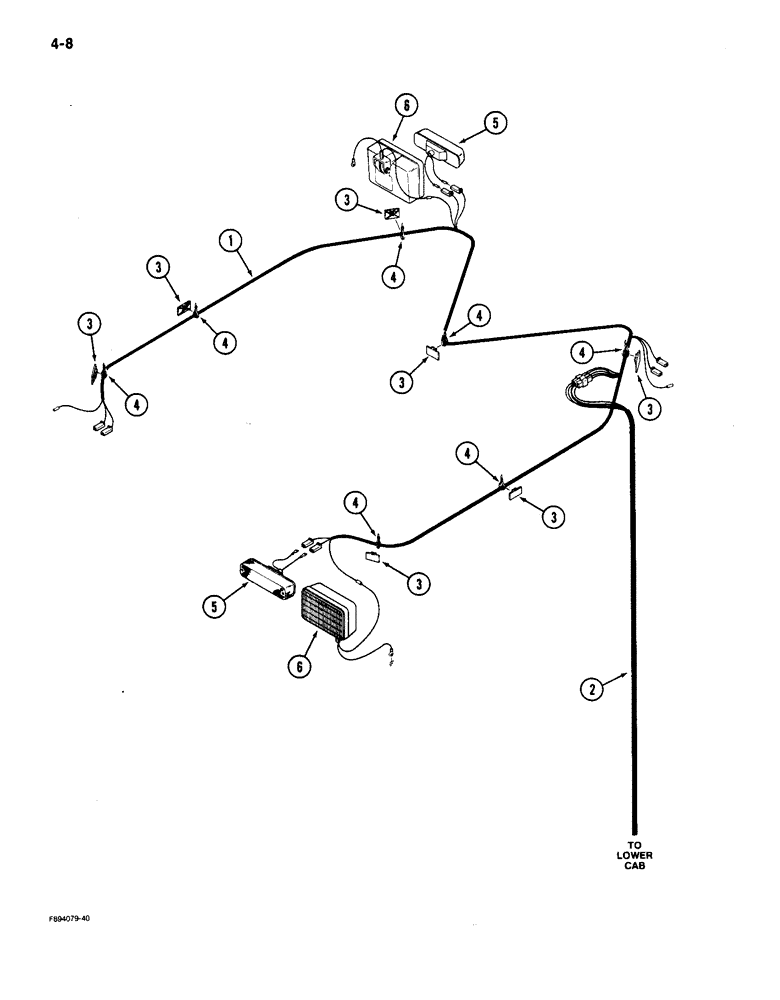

Схема запчастей Case IH 9150 - (4-08) - OVERHEAD CAB HARNESS, ROPS (04) - ELECTRICAL SYSTEMS
4
3
3
6
3
3
4
3
4
3
6
4
3
5
2
4
4
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-2483T1

HARNESS

- overhead

1шт.

2

60-6109T2

HARNESS

- main cab (See Figure 4-4)

1шт.

3

22-823

MOUNT

MOUNT - adhesive backed

7шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

5

REF

INSTRUCTION

LIGHT ASSEMBLY - warning (See Figure 4-36)

4шт.

6

REF

INSTRUCTION

LIGHT ASSEMBLY - field (See Figure 4-36)

4шт.
