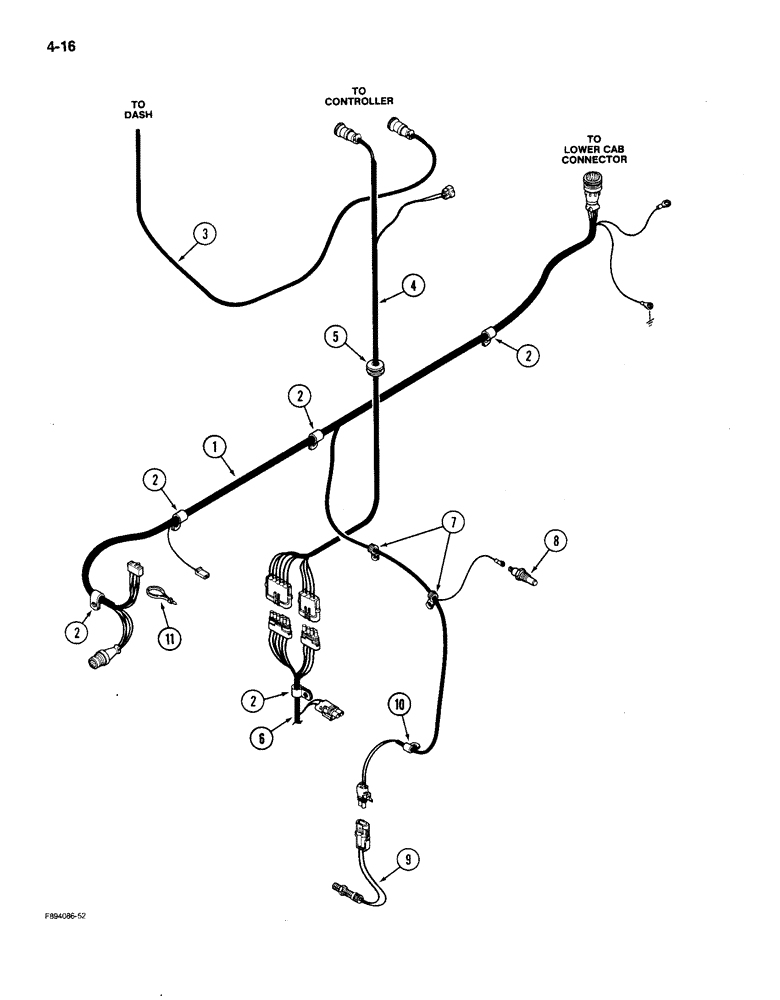

Запчасти Case IH 9150 (4-16) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6092T2

HARNESS

ASSEMBLY - transmission

1шт.

2

31-2488

CLAMP

- retaining

6шт.

3

60-6089T1

HARNESS

ASSEMBLY - dash display

1шт.

4

60-6288T1

HARNESS

ASSEMBLY - transmission solenoid

1шт.

5

1-1051

GROMMET

- protective

1шт.

6

60-6289T1

HARNESS

ASSEMBLY - solenoid, transmission

1шт.

7

31-1775

CLAMP

- retaining

2шт.

8

47-4181

IGNITION SWITCH

SWITCH - temperature

1шт.

9

60-6085T1

SENSOR

- magnetic, MPH

1шт.

10

31-1862

CLAMP

- retaining

1шт.

11

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.
