(4-18) - FRONT HEADLIGHT HARNESS

Запчасти Case IH 9150 (4-18) - FRONT HEADLIGHT HARNESS (04) - ELECTRICAL SYSTEMS

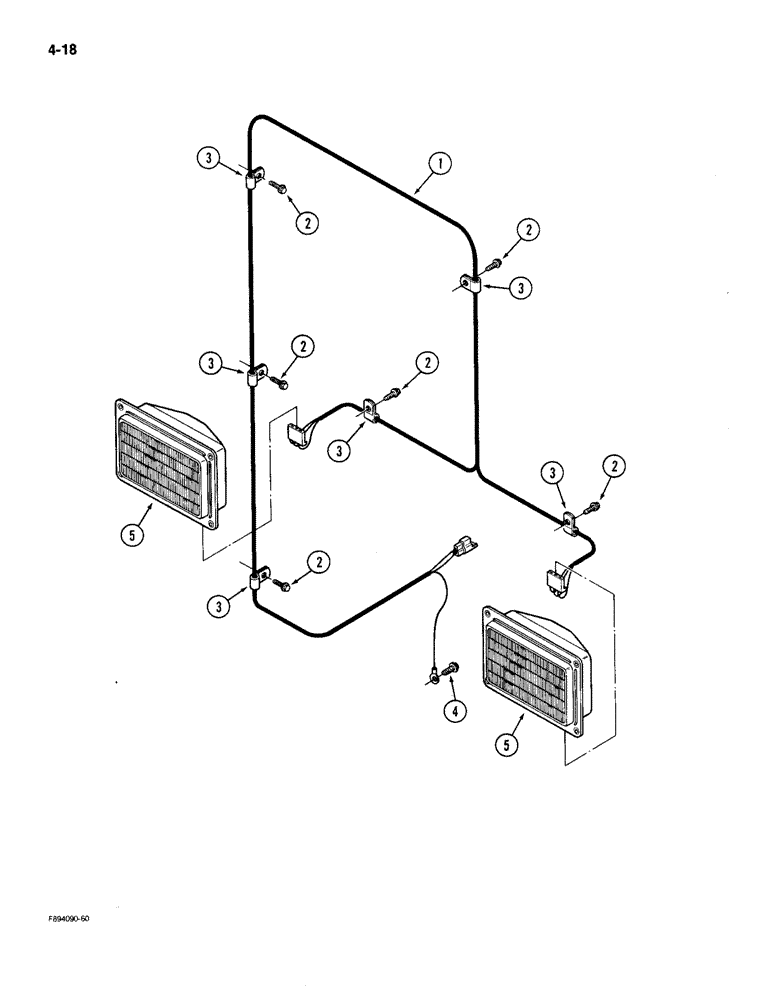

Схема запчастей Case IH 9150 - (4-18) - FRONT HEADLIGHT HARNESS (04) - ELECTRICAL SYSTEMS
2
2
3
1
2
2
3
5
3
2
3
2
5
3
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-2022T1

HARNESS

ASSEMBLY - headlamp

1шт.

2

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, flanged, 1/4 NC x 3/4 inch

6шт.

3

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

6шт.

4

19-957

SCREW

- tapping, flanged, 5/16 NC x 3/4 inch

1шт.

5

REF

INSTRUCTION

LAMP ASSEMBLY - head (See Figure 4-36)

2шт.
