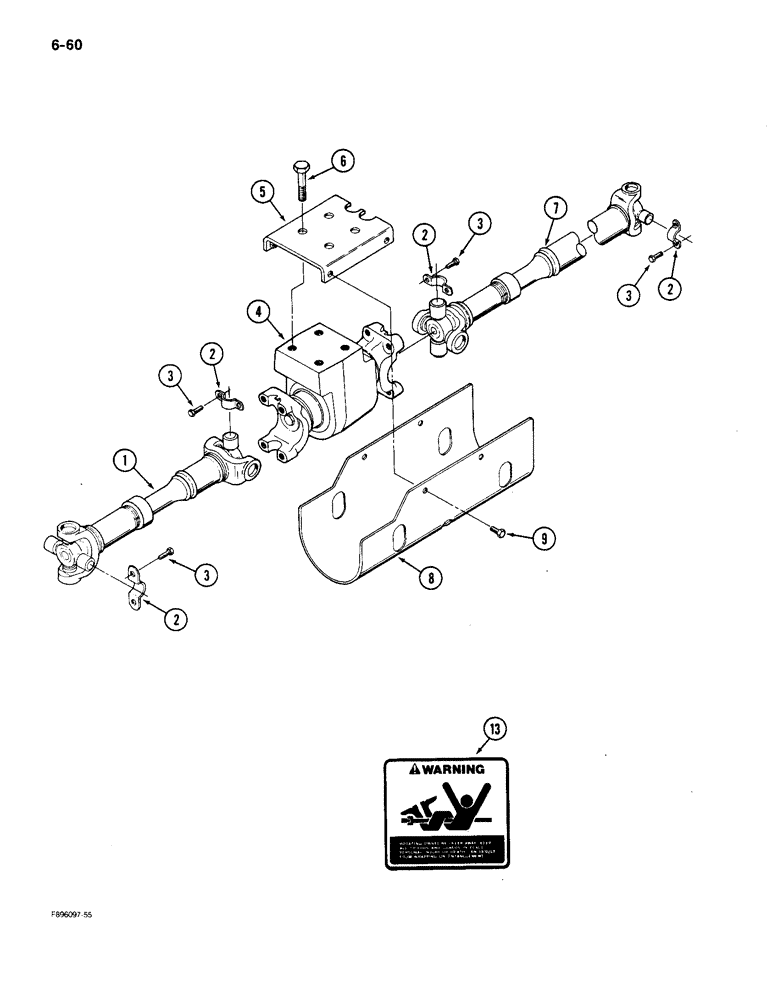

Запчасти Case IH 9150 (6-060) - PTO DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

DRIVE SHAFT - PTO, front, PTO clutch to hanger bearing (See Figure 6-62)

1шт.

2

L116943

SECURING STRAP

RETAINER - drive shaft

8шт.

3

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, 12 pt Flg Hd, 3/8"-16 x 3/4, G8

16шт.

4

REF

INSTRUCTION

BEARING ASSEMBLY - hanger (See Figure 6-62)

1шт.

5

90-6081T1

PLATE

- mounting, drive shaft shield

1шт.

6

24879R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

4шт.

7

REF

INSTRUCTION

DRIVE SHAFT - PTO, rear, hanger bearing to transfer case (See Figure 6-62)

1шт.

8

90-6637T1

SHIELD

- drive shaft

1шт.

9

9418822

BOLT,Hex, 3/8" x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

13

2-7126T1

DECAL

- PTO drive shaft

2шт.
