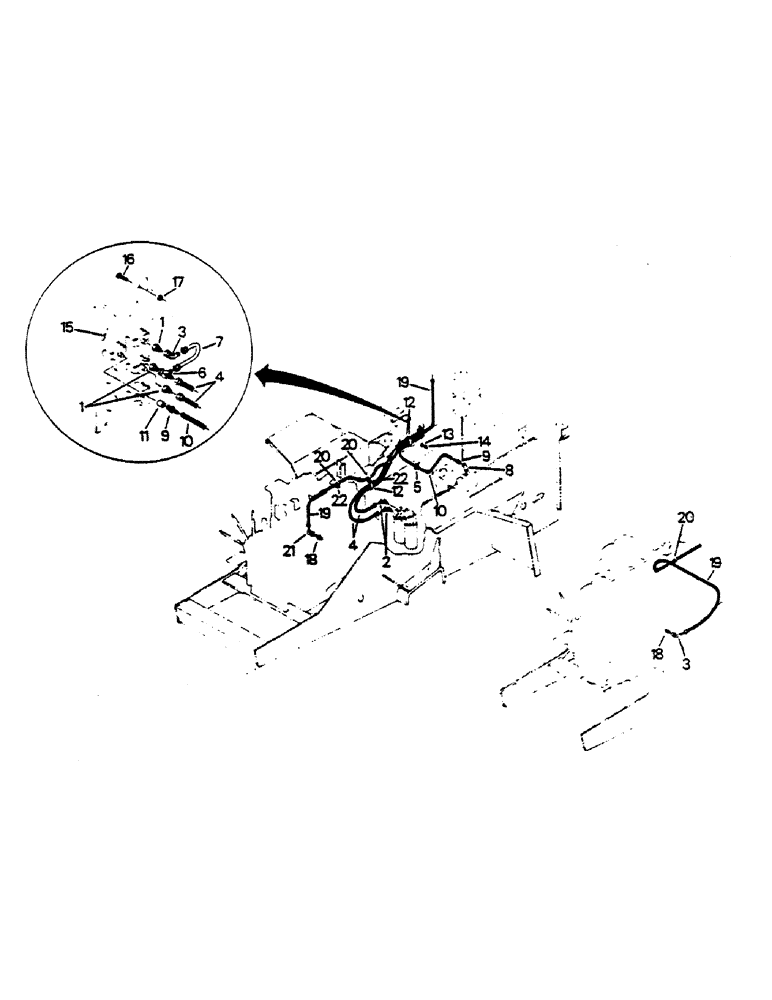

Запчасти Case IH 9170 (02-19) - GAUGE PLUMBING, VEHICLE WARNING SYSTEM (06) - ELECTRICAL

1

31-1593

ADAPTER

REDUCER, 1/8 NPT female x 7/16-20 JIC 37 degree male

3шт.

2

31-661

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1/8 NPT male x 7/16-20 JIC 37 degree male

2шт.

3

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

7/16-20 JIC 37 degree female x 7/16-20 JIC 37 degree male (Qty 1 on Cat engine)

2шт.

4

31-1667

HOSE ASSY.

HOSE

2шт.

5

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

12шт.

6

31-2158

TEE,37 Degree, 7/16"-20, x 7/16"-20, Fem Sw Run

7/16-20 JIC 37 degree female x 7/16-20 JIC 37 degree male x 7/16-20 JIC 37 degree male

1шт.

7

50-1859T1

TUBE ASSY.

TUBE

1шт.

8

31-77

ELBOW

1/8 NPT female x 1/8 NPT female

1шт.

9

31-2159

BARBED FITTING, 1/8 NPT male x 1/4 hose

2шт.

Ref. 9 standards part number for hose connector barb system is 217-120

1шт.

10

31-2157

FUEL HOSE

HOSE

1шт.

11

31-605

HYD CONNECTOR,1/8"-27 NPTF, Female

COUPLING, 1/8 NPT female x 1/8 NPT female

1шт.

12

31-1070

CLAMP,5/8", 3/8" Bolt, Double

3шт.

13

19-107

WASHER

3/8

1шт.

14

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

1шт.

15

INSTRUMENT PANEL (See Fig. 2-20)

1шт.

16

9419004

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 3/4 G-5

4шт.

17

19-1081

LOCK NUT

LOCK NUT, 1/4 UNC G-A

4шт.

18

19-1101

HYD CONNECTOR,7/16" - 20, 37 Degree x 3/8" - 18, NPTF

FITTING, 3/8 NPT male x 7/16-20 JIC 37 degree male

1шт.

19

31-2155

HOSE

(Cummins engine)

1шт.

31-2153

HOSE

(Cat engine)

1шт.

20

31-1775

CLAMP

2шт.

21

31-2178

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

7/16-20 JIC 37 degree female x 7/16-20 JIC 37 degree male (Cat engine only)

1шт.

22

EXISTING HARDWARE

1шт.
