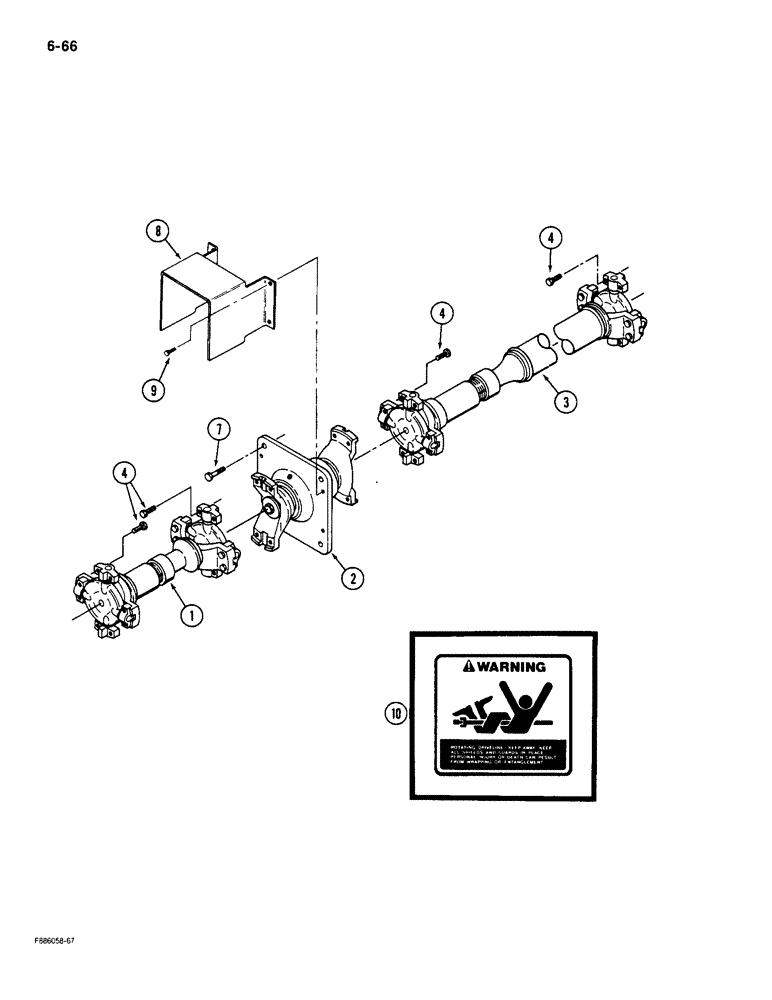

Запчасти Case IH 9180 (6-66) - PTO DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

SHAFT ASSEMBLY - PTO drive, front (See Fig. 6-68)

1шт.

2

REF

INSTRUCTION

BEARING ASSEMBLY - hanger (See Fig. 6-68)

1шт.

3

REF

INSTRUCTION

SHAFT ASSEMBLY - PTO drive, rear (See Fig. 6-68)

1шт.

4

25705R1

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, Grade 8

16шт.

7

19-675

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

- hex, 5/8 NC x 1-1/4 inch

4шт.

8

90-6880T1

SHIELD

- drive shaft

1шт.

9

19-889

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

- hex, 3/8 NC x 1/2 inch

4шт.

10

2-7126T1

DECAL

- PTO drive shaft

2шт.
