(9-058) - SEAT AIR SUSPENSION CAB, [CONT]

Запчасти Case IH 9180 (9-058) - SEAT AIR SUSPENSION CAB, [CONT] (09) - CHASSIS/ATTACHMENTS

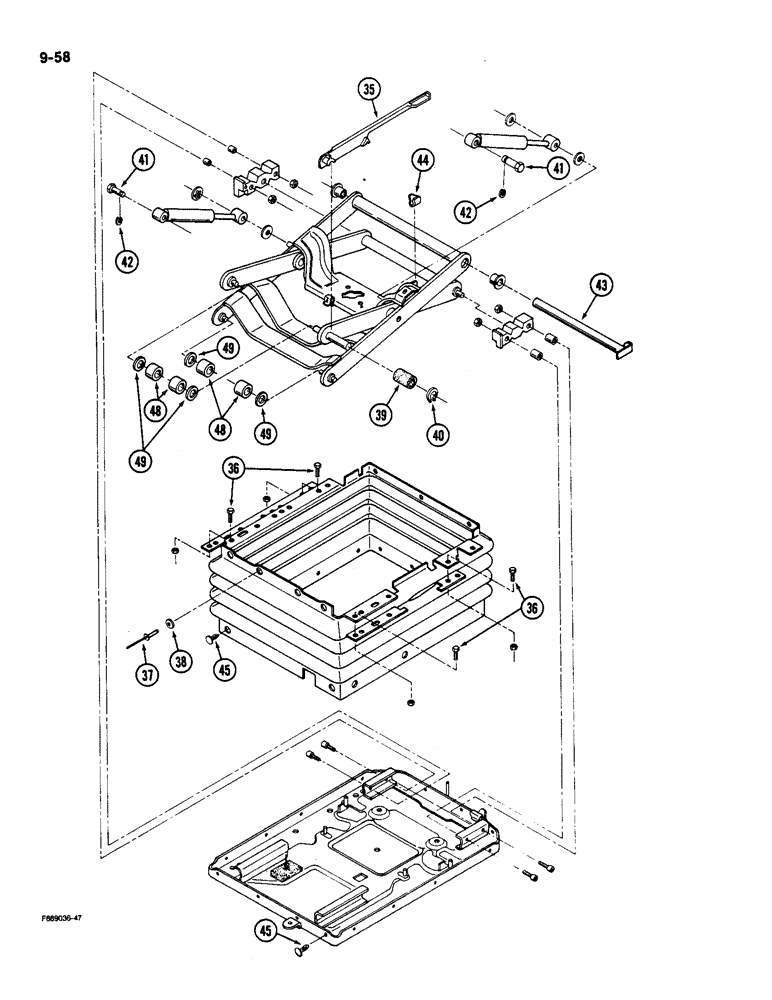

Схема запчастей Case IH 9180 - (9-058) - SEAT AIR SUSPENSION CAB, [CONT] (09) - CHASSIS/ATTACHMENTS
40
42
49
49
39
48
49
43
42
37
38
44
36
36
45
45
35
41
41
48
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

60-4901T91

CAM

ASSEMBLY - sliding,(Continued from previous Fig.), Includes: Ref. 35 - 45

1шт.

35

NSS

NOT SOLD SEPARAT

CAM - sliding

1шт.

36

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

BOLT - hex, M8 x 16 mm

4шт.

37

1-2503

RIVET,Pop, .146" x .425"

- pop, 5/32 x 1/4 inch

1шт.

38

19-699

WASHER,3/16"

- flat, 3/16 x 1/2 x 3/64 inch

1шт.

39

60-4905T1

BUMPER

- suspension

1шт.

40

60-4906T1

RING, SNAP

RING - snap, M12

1шт.

41

60-3233T1

PIN

- shock absorber

2шт.

42

40-1182

CIRCLIP,M6

RING - snap, M5

2шт.

43

60-4885T1

ROLLER

PIN - swing arm pivot

1шт.

44

60-4881T1

CLIP,ELECTRICAL

CUP - cable retaining

1шт.

45

60-1613T1

FASTENER

- snap, boot

25шт.

48

60-4879T1

NEEDLE BEARING

- needle roller

4шт.

49

60-4878T1

FELT SEAL

- dust, felt

4шт.
