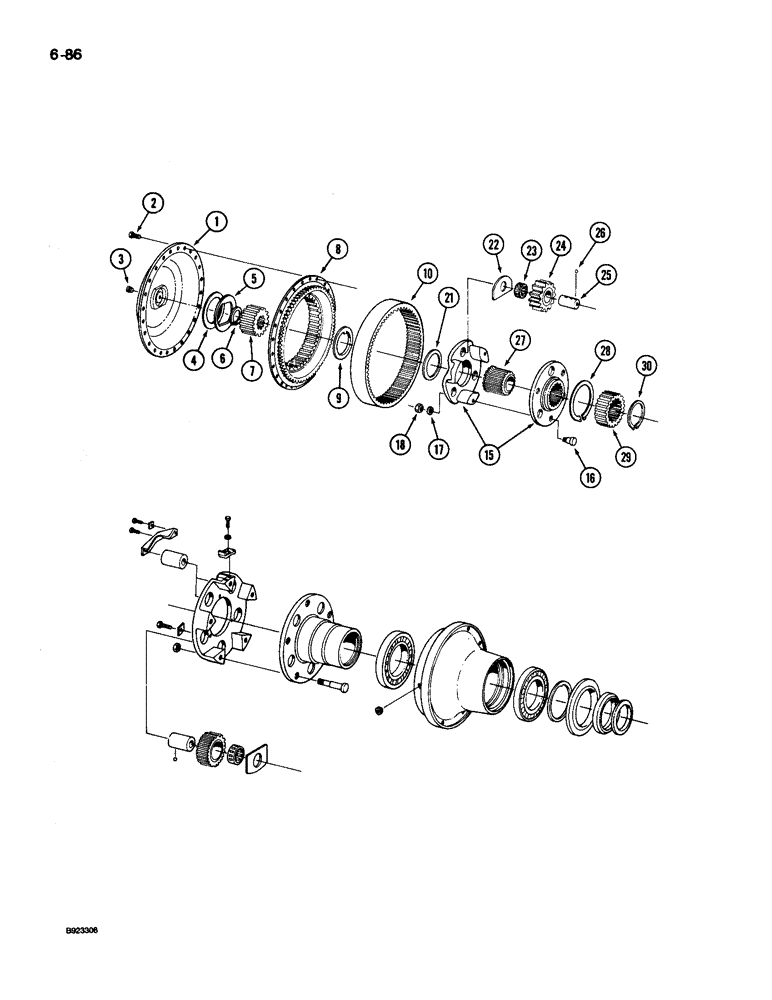

Запчасти Case IH 9240 (6-086) - STEERABLE AXLE, WHEEL HUB AND AXLE PLANETARY (06) - POWER TRAIN

90-7320T91

AXLE, FRONT

AXLE ASSEMBLY - front (Without limited slip differential), Includes: Ref. 1 - 30 and 37 - 75 on Figure 6-088

1шт.

90-7318T91

AXLE

ASSEMBLY - front (With limited slip differential), Includes: Ref. 1 - 30 and 37 - 75 on Figure 6-088

1шт.

90-7319T91

AXLE, REAR

AXLE ASSEMBLY - rear (Without limited slip differential), Includes: Ref. 1 - 30 and 37 - 75 on Figure 6-088

1шт.

90-7317T91

AXLE

ASSEMBLY - rear (With limited slip differential), Includes: Ref. 1 - 30 and 37 - 75 on Figure 6-088

1шт.

1

90-7461T1

COVER

- axle end

2шт.

2

90-7371T1

FLANGE BOLT,M14 x 1.5 x 45mm

BOLT - hex, 14 - 1.5 x 45 mm, class 10.9

48шт.

3

90-2523T1

PLUG

- socket head, 24 mm - 1.5

2шт.

4

90-7462T1

SHIM

- disk, 1 mm

1шт.

5

90-7435T1

DISC

DISK - wheel end

2шт.

6

16-1596

RING, SNAP

RING - snap

2шт.

7

90-4519T1

PINION

GEAR - sun (45 Tooth)

2шт.

8

90-4521T1

GEAR, RING

GEAR - double ring

2шт.

9

90-4497T1

DISC

DISK - spacer

2шт.

10

90-4529T1

GEAR, RING

GEAR - ring

2шт.

90-7436T91

PLANETARY REDUCER

CARRIER ASSEMBLY - planetary, Includes: Ref. 15 - 30

2шт.

15

90-7437T91

CARRIER

ASSEMBLY - planetary, Includes: Ref. 16 - 18 and both halves

1шт.

16

16-1608

SCREW,Hex Shldr

BOLT - shoulder

3шт.

17

16-1599

WASHER

- flat

3шт.

18

16-1598

NUT

- hex, 16 - 1.5

3шт.

21

90-7438T1

SPACER

RING - spacer

1шт.

22

1-8341

SPACER

PLATE - wear, spacer

6шт.

23

1-8340

BEARING, NEEDLE

BEARING - needle roller (2 per gear)

6шт.

24

90-4525T1

PINION

GEAR - pinion, idler (26 tooth)

3шт.

25

90-2567T1

PIN

SHAFT - planetary pin (With lube hole)

3шт.

26

16-1607

BALL

- steel

3шт.

27

90-4526T1

PINION

GEAR - sleeve

1шт.

28

90-4528T1

RING, SNAP

RING - snap

1шт.

29

16-1622

SUN GEAR

GEAR - sun

1шт.

30

16-1623

RING, SNAP

RING - snap

1шт.
