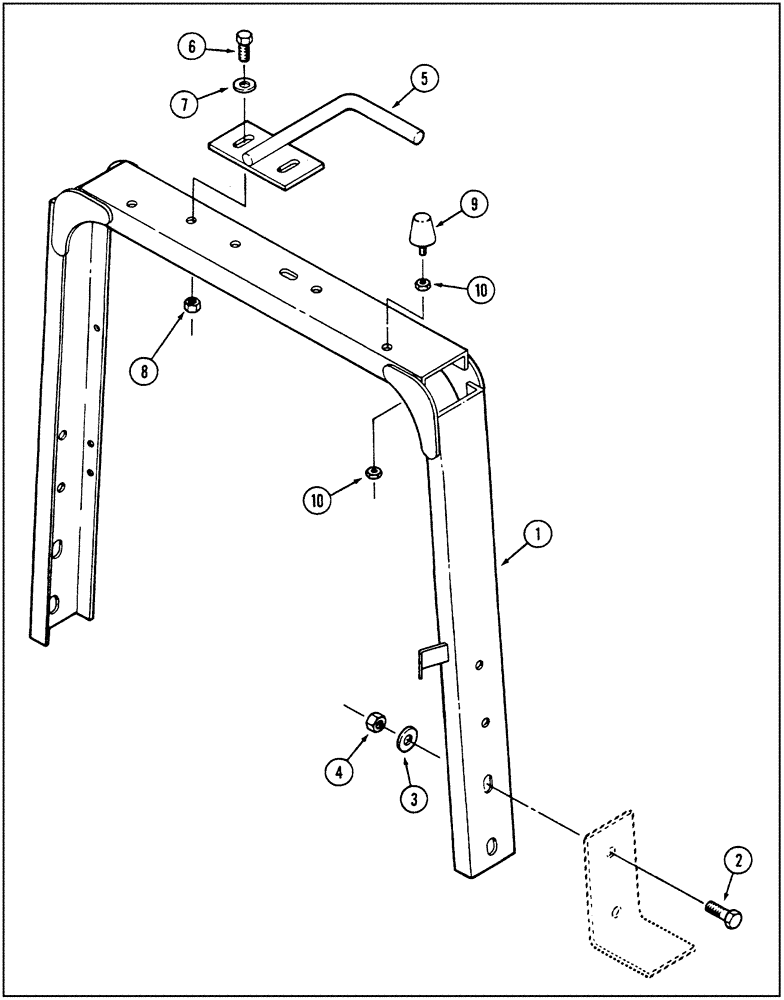

Запчасти Case IH 9240 (9-027A) - HOOD SUPPORT, HOOD SUPPORT BRACKET, SHOWN IN PHANTOM, WELDED TO FRAME (09) - CHASSIS/ATTACHMENTS

1

70-6504T1

SUPPORT

- hood, rear, hood, rear

1шт.

2

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

4шт.

3

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

4

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

4шт.

5

70-5241T1

BAR

ROD - hood retaining

1шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

7

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

8

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

9

N7673

BUMPER

- rubber, hood adjustment

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
