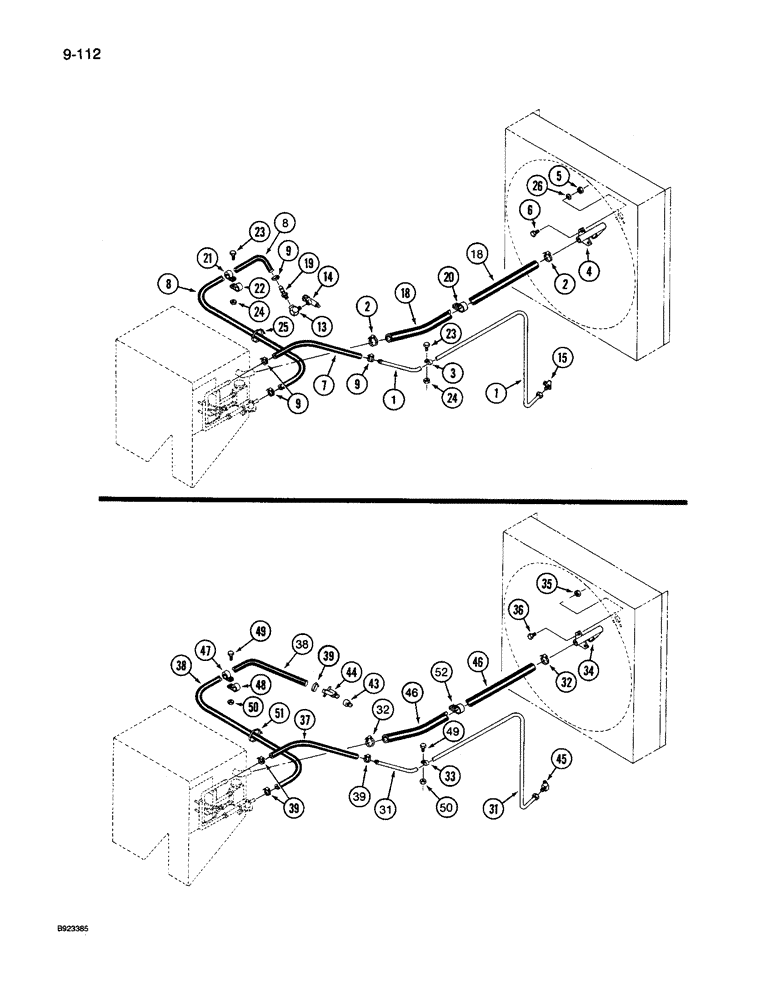

Запчасти Case IH 9240 (9-112) - HEATER LINES, 9240 TRACTOR, PRIOR TO P.I.N. JCB0028400 (09) - CHASSIS/ATTACHMENTS

1

90-6720T3

HEATER TUBE,0.625" OD x 30.51" L

TUBE - heater

1шт.

2

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, #20, 0.81/1.75 Type F Worm

2шт.

3

31-2488

CLAMP

- hose

1шт.

4

90-6830T1

TUBE,3.69 mm L

- evacuation

1шт.

5

27254R1

NUT

- hex lock, 5/16 inch NC

3шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

7

NSS

NOT SOLD SEPARAT

HOSE - heater core return, 5/8 x 12 inch long (Order 97252C1 and, Serial Range: cut-length)

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - heater core inlet, 5/8 x 53 inch long (Order 97252C1 and, Serial Range: cut-length)

1шт.

9

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj., Meter #08, 0.50/0.91 Type F Worm

4шт.

13

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degree, 1/2 to 7/8 inch thread

1шт.

14

31-1275

SHUT-OFF VALVE

VALVE - shutoff

1шт.

15

86513002

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 90 degree, 1/2 PT x 7/8 inch thread

1шт.

18

31-1507

HOSE,1.00" ID x 63.00"

Order 31-1502T1, and Cut to Required Length (Replaces NSS) 1.00" ID x 63.00"

1шт.

19

31-249

PIPE FITTING

CONNECTOR - barbed, 3/8 PT x 5/8 inch

1шт.

20

32-343

MOUNTING CLIP

CLAMP - hose

1шт.

21

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining (Replaces 32-302)

1шт.

22

31-1348

CLAMP

- hose

1шт.

23

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

24

425-106

NUT,3/8"-16, Cl 5

2шт.

25

19-135

CABLE TIE

STRAP - nylon

3шт.

26

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

31

90-6720T3

HEATER TUBE,0.625" OD x 30.51" L

TUBE - heater, P.I.N. JCB0028400 and after

1шт.

32

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , P.I.N. JCB0028400 and after #20, 0.81/1.75 Type F Worm

2шт.

33

31-1776

MOUNTING CLIP

CLAMP - retaining, P.I.N. JCB0028400 and after

1шт.

34

90-6830T1

TUBE,3.69 mm L

- evacuation, P.I.N. JCB0028400 and after

1шт.

35

27254R1

NUT

- hex lock, 5/16 inch NC, P.I.N. JCB0028400 and after

3шт.

36

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8, P.I.N. JCB0028400 and after

3шт.

37

NSS

NOT SOLD SEPARAT

HOSE - heater core, 5/8 x 23 inch long (Order 97252C1 and cut to length), P.I.N. JCB0028400 and after

1шт.

38

NSS

NOT SOLD SEPARAT

HOSE - heater core, 5/8 x 53 inch long (Order 97252C1 and cut to length), P.I.N. JCB0028400 and after

1шт.

39

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj., Meter, P.I.N. JCB0028400 and after #08, 0.50/0.91 Type F Worm

4шт.

43

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female, P.I.N. JCB0028400 and after

1шт.

44

941980R1

SHUT-OFF VALVE

VALVE - water shut off, P.I.N. JCB0028400 and after

1шт.

45

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, 7/8 flare x 5/8 inch PT, P.I.N. JCB0028400 and after

1шт.

46

31-2981

HOSE,1.00" ID x 56.00"

Evacuation; Order 31-1502, and Cut to Required Length; See Below (P.I.N. JCB0028400 and After) 1.00" ID x 56.00"

1шт.

47

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining (Replaces 32-302), P.I.N. JCB0028400 and after

1шт.

48

31-1348

CLAMP

- hose retaining, P.I.N. JCB0028400 and after

1шт.

49

426-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

- hex, 3/8 NC x 1/2 inch, grade 8, P.I.N. JCB0028400 and after

2шт.

50

425-106

NUT,3/8"-16, Cl 5

P.I.N. JCB0028400 and after 3/8"-16, G5

2шт.

51

19-135

CABLE TIE

STRAP - tie, nylon, P.I.N. JCB0028400 and after

3шт.

52

32-343

MOUNTING CLIP

CLAMP - hose, P.I.N. JCB0028400 and after

1шт.
