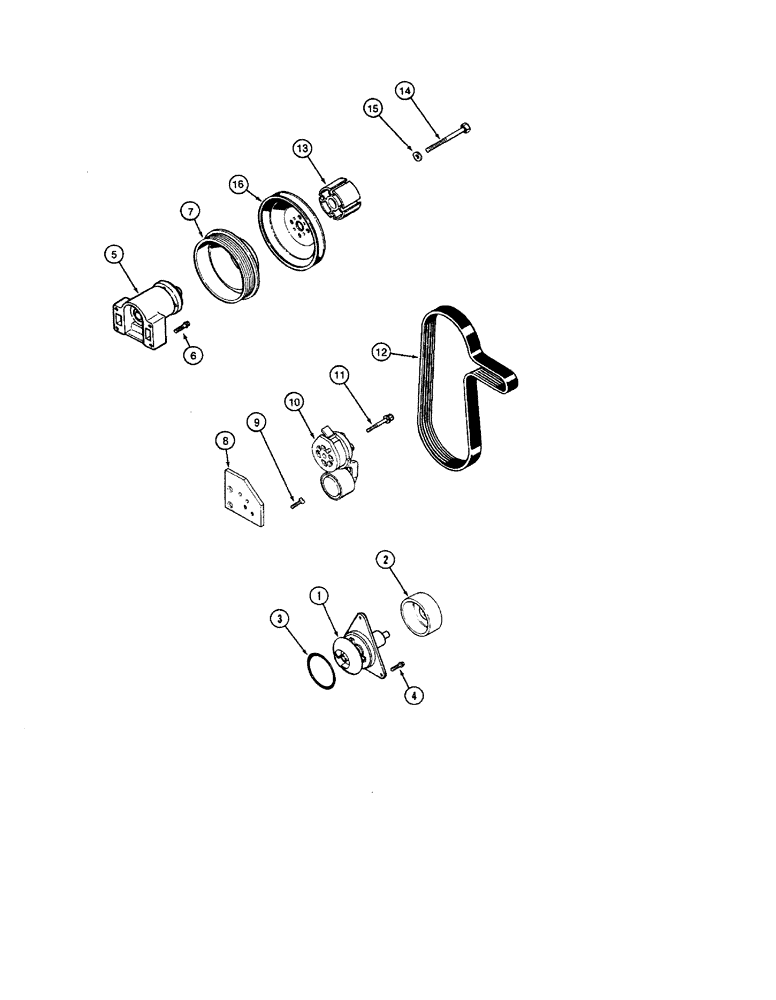

Запчасти Case IH 9240 (2-028) - WATER PUMP AND BELT TENSIONER, 6TA-830 ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
AR77704
PUMP, WATER
PUMP - water, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly
1шт.
Water pump remanufacture program is not available at this time, order A77704 water pump kit.
1шт.
J800976R
REMAN-WATER PUMP
9240 6TA-830 ENGINE (10/90-10/94), Reman for New P/N AR77704
1шт.
AC77704
CORE-HYDRAULIC PUMP
RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly
1шт.
Water pump remanufacture program is not available at this time, order A77704 water pump kit.
1шт.
J800976R
REMAN-WATER PUMP
9240 6TA-830 ENGINE (10/90-10/94), Reman for New P/N A77704
1шт.
6
845-8050
BOLT,Hvy Hex, M8 x 50mm, Cl 8.8
- heavy hex flange, 8 - 1.25 x 50 mm
4шт.
9
J925186
SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9
Flat head cap, Special Torx Soc, M8 x 1.25 x 25
2шт.
11
854-10070
BOLT,Hvy Hex, M10 x 70mm, Cl 10.9
- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9
1шт.
12
J911572
V-BELT,27.92mm W x 1549.4mm L, 8 Ribs
Fan 3.56 mm W x 1549.90 mm L, 8 Ribs
1шт.
15
WASHER,11mm ID x 21mm OD x 2.5mm Thk
- flat, 11 x 21 x 2.5 mm, hardened
4шт.
