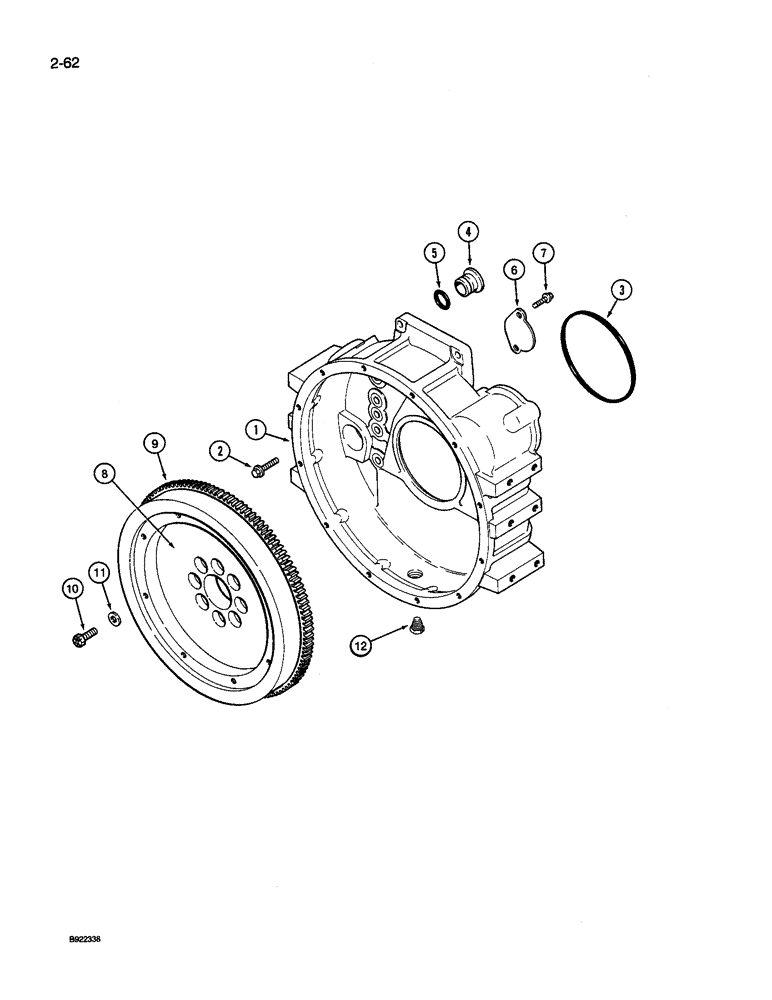

Запчасти Case IH 9240 (2-062) - FLYWHEEL AND HOUSING, 6TA-830 ENGINE (02) - ENGINE

1

J906689

HOUSING

- flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

12шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

4

J910248

PLUG

- hole, barring

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

6

J908095

PLATE

- cover

1шт.

7

J902735

BOLT,M8 - 1.25 x 21 mm

SCREW - self tapping, special

2шт.

8

J906809

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 9

1шт.

9

J902127

FLYWHEEL

GEAR - ring, flywheel

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex cup, 12 x 32 mm

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, mounting

8шт.

12

353-225

PLUG,Sltd Hd, 3/4"-16

- slotted hex, 3/4 inch NF

1шт.
