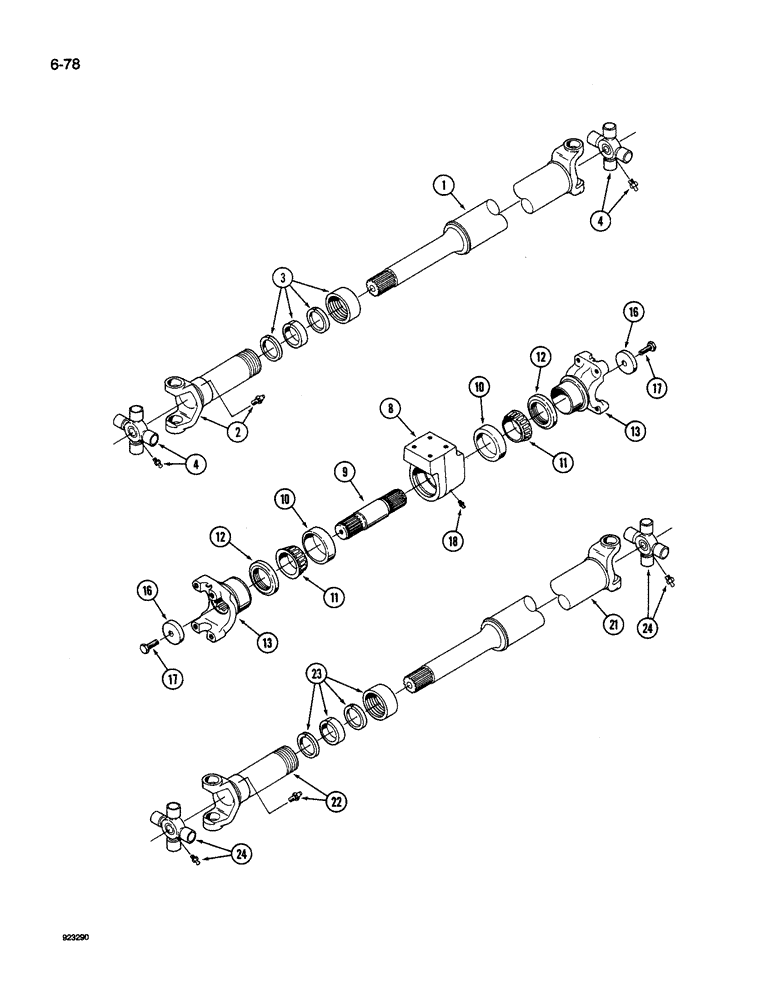

Запчасти Case IH 9250 (6-078) - POWER TAKEOFF DRIVE SHAFTS, CLUTCH TO HANGER BEARING (06) - POWER TRAIN

90-7008T91

SHAFT

ASSEMBLY - PTO drive, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

3

33-1001T1

SEAL RETAINER

SEAL - shaft retainer

1шт.

4

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

SPIDER - shaft

2шт.

90-7037T91

CHUTE (DOWNWARD)

HANGER ASSEMBLY - drive shaft bearing, Includes: Ref. 8 - 18

1шт.

8

90-6446T1

HOUSING

- hanger bearing, drive shaft

1шт.

9

90-1930T1

SHAFT

- drive, canter, bearing hanger

1шт.

10

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP - bearing, drive shaft hanger

2шт.

11

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

CONE - bearing, drive shaft hanger

2шт.

12

90-1934T2

SEAL

- grease, drive shaft bearing hanger

2шт.

13

90-7006T1

YOKE

- shaft, drive bearing hanger

2шт.

16

19-5864

WASHER

- flat, 5/8 x 2-3/4 x 1/2 inch, drive shaft bearing hanger

2шт.

17

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

Drive shaft bearing hanger Hex, 5/8"-11 x 1 1/4", G8, Full Thd

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight 1/8 PT x 21/32 inch, drive shaft bearing hanger

1шт.

90-7009T92

DRIVE SHAFT

SHAFT ASSEMBLY - PTO drive, hanger bearing to transfer case, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke, bearing hanger to transfer case

1шт.

22

NSS

NOT SOLD SEPARAT

SHAFT - flanged, bearing hanger to transfer case

1шт.

23

33-1001T1

SEAL RETAINER

SEAL - shaft retainer, bearing hanger to transfer case

1шт.

24

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

SPIDER - shaft (Replaces 33-1004T2), bearing hanger to transfer case

2шт.
