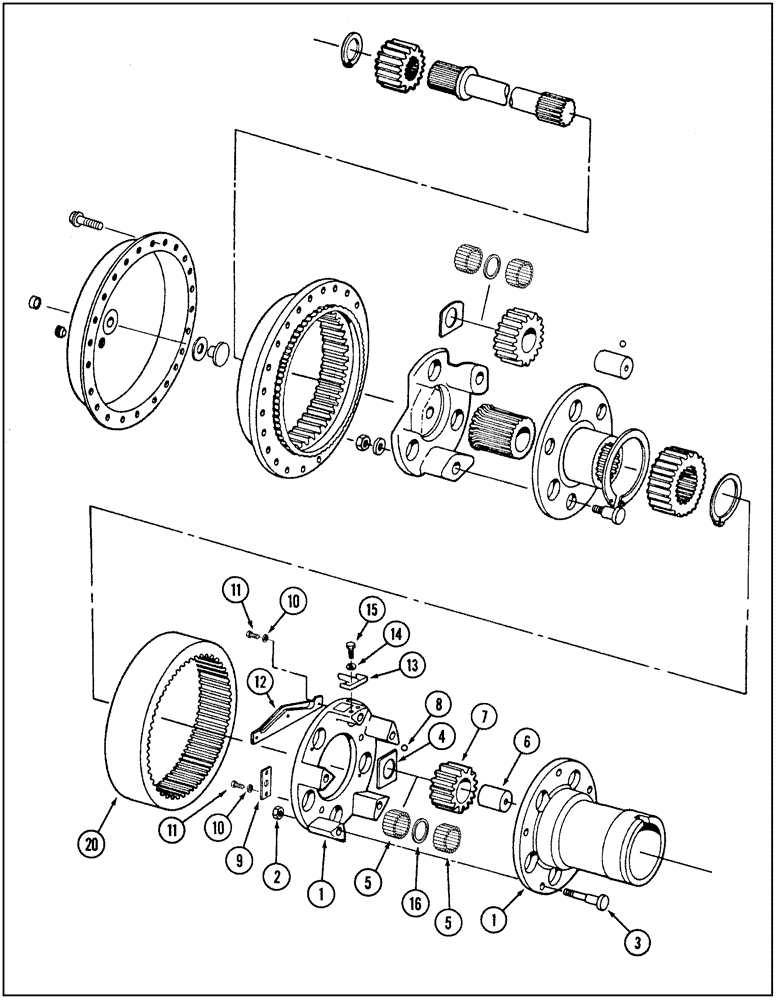

Запчасти Case IH 9250 (6-109A) - RIGID AXLE, WHEEL HUB PLANETARY, 9250 TRACTOR, P.I.N. JEE0032778 AND AFTER (06) - POWER TRAIN

90-7844T91

4WD AXLE ASSY

AXLE ASSEMBLY - front, without limited slip differential, k698.78, Includes: Ref. 1 - 20 and 21 - 50 on Figure 5-109C

1шт.

90-7842T91

4WD AXLE ASSY

AXLE ASSEMBLY - front, with limited slip differential, k698.95, Includes: Ref. 1 - 20 and 21 - 50 on Figure 5-109C

1шт.

90-7845T91

REAR AXLE

AXLE ASSEMBLY - rear, without limited slip differential, k698.68, Includes: Ref. 1 - 20 and 21 - 50 on Figure 5-109C

1шт.

90-7843T91

AXLE HOUSING

AXLE ASSEMBLY - rear, with limited slip differential, k698.85, Includes: Ref. 1 - 20 and 21 - 50 on Figure 5-109C

1шт.

90-7830T91

PLANETARY REDUCER

PLANETARY ASSEMBLY - inner, Includes: Ref. 1 - 16

2шт.

90-7834T91

CARRIER

ASSEMBLY - inner planetary, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - inner planetary, Includes: both halves

1шт.

2

16-1598

NUT

- hex, special

5шт.

3

90-4538T1

SCREW

BOLT - shoulder

5шт.

4

90-7831T1

LARGE PLATE

PLATE - wear

10шт.

5

90-7832T1

NEEDLE

- bearing, 44 per gear

220шт.

6

90-7833T1

PIN

SHAFT - planetary pinion, with lube hole

3шт.

6

90-7835T1

PIN

SHAFT - planetary pinion, without lube hole

2шт.

7

90-7836T1

PINION

GEAR - pinion, 19 teeth, inner planetary

5шт.

8

16-1607

BALL

- steel

5шт.

9

90-7817T1

LARGE PLATE

TAB - locking, 4 mm thick

3шт.

10

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened

9шт.

11

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

BOLT - hex, 8 x 15 mm, grade 10.9

9шт.

12

90-4530T1

LARGE PLATE

PLATE - baffle

1шт.

13

90-4532T1

LARGE PLATE

PLATE - oil

1шт.

14

896-12006

WASHER,6.4mm ID x 13mm OD x 2mm Thk

- flat, 6.4 x 12.5 x 2 mm

2шт.

15

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

16

90-7837T1

RING

bearing seat

5шт.

20

90-4529T1

GEAR, RING

GEAR - ring

2шт.
