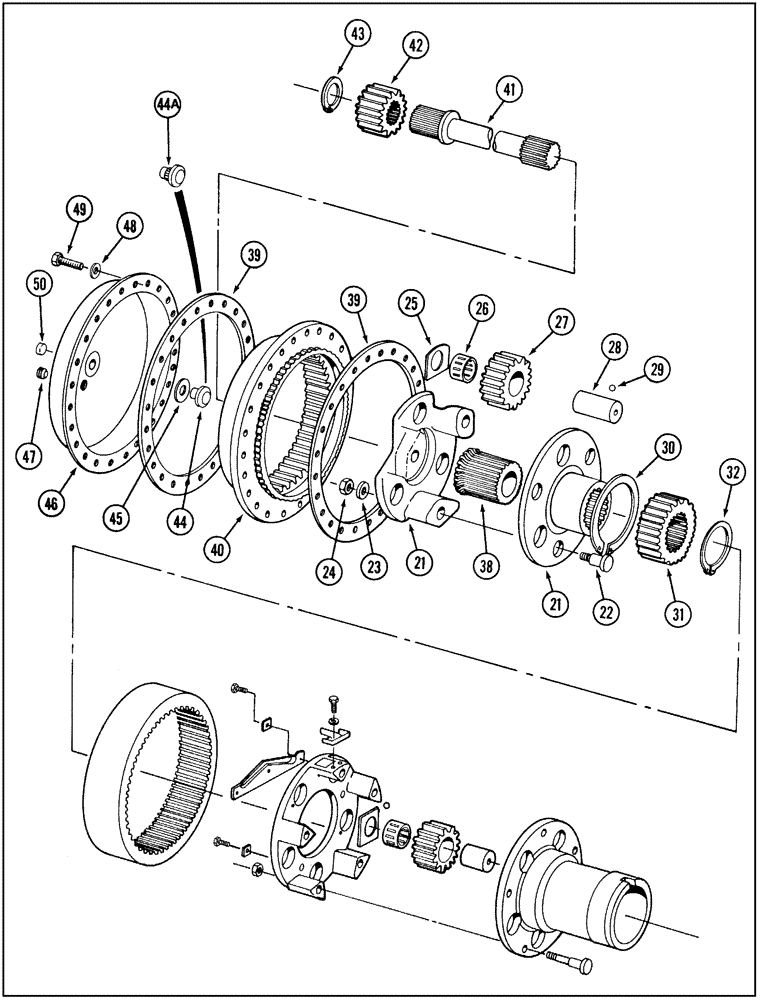

Запчасти Case IH 9250 (6-109G) - REAR RIGID AXLE, WHEEL HUB PLANETARY, 9250 ROW CROP TRACTOR, PRIOR TO P.I.N. JEE0032778 (CONTD) (06) - POWER TRAIN

90-6557T91

AXLE HOUSING

AXLE ASSEMBLY - rear, without limited slip diffferential, k598.68, Includes: Ref. 21 - 50 and 1 - 20 on Figure 6-109E

1шт.

90-6993T91

AXLE HOUSING

AXLE ASSEMBLY - rear, with limited slip differential, k598.85, Includes: Ref. 21 - 50 and 1 - 20 on Figure 6-109E

1шт.

90-4522T91

REDUCER

CARRIER ASSEMBLY - planetary, outer, Includes: Ref. 21 - 38

2шт.

21

90-4523T91

REDUCER

CARRIER ASSEMBLY - planetary, Includes: Ref. 22 - 24

1шт.

22

16-1608

SCREW,Hex Shldr

BOLT - hex shoulder, special

3шт.

23

16-1599

WASHER

- flat, special

3шт.

24

16-1598

NUT

- hex, special

3шт.

25

1-8341

SPACER

PLATE - wear

6шт.

26

1-8340

BEARING, NEEDLE

BEARING - needle, 2 per gear

6шт.

27

90-4525T1

PINION

GEAR - pinion, 26 tooth

3шт.

28

90-2567T1

PIN

SHAFT - planetary pinion, with lube hole

3шт.

29

16-1607

BALL

- steel

3шт.

30

90-4528T1

RING, SNAP

RING - snap

1шт.

31

16-1622

SUN GEAR

GEAR - sun

1шт.

32

16-1623

RING, SNAP

RING - snap

1шт.

38

90-4526T1

PINION

GEAR - sleeve

1шт.

39

B17555

LOCTITE

SEALANT - Gasket Eliminator No. 515, 50 ml tube

1шт.

40

90-4521T1

GEAR, RING

GEAR - double ring

2шт.

41

90-2535T1

SHAFT

- axle, 1106.5 mm long, without limited slip differential

2шт.

41

90-2536T1

SHAFT

- axle, 1236.5 mm long, without limited slip differential

2шт.

41

90-7178T1

SHORT SHAFT

SHAFT - axle, 1147.5 mm long, with limited slip differential

2шт.

41

90-7177T1

LONG SHAFT

SHAFT - axle, 1195.5 mm long, with limited slip differential

2шт.

42

90-4519T1

PINION

GEAR - sun, 25 tooth

2шт.

43

16-1596

RING, SNAP

RING - snap

2шт.

44

90-7615T1

PIN

- support, axle shaft, use with 90-7616T1 cover

2шт.

44a

90-2555T2

PIN

- headed, splined, axle shaft support, use with 90-4520T1 cover

2шт.

45

90-2554T1

SHIM

- support pin

1шт.

46

90-7616T1

COVER

- axle end, with 32 mm diameter bored hole through center of cover

2шт.

46

90-4520T1

COVER

- axle end, without 32 mm diameter bored hole through center of cover

2шт.

47

90-2523T1

PLUG

- special, check and fill

2шт.

48

16-1592

LOCK WASHER

- lock, 15 mm

48шт.

49

90-7371T1

FLANGE BOLT,M14 x 1.5 x 45mm

BOLT - flange, 14 mm - 1.5 x 45 mm, grade 10.9

48шт.

50

90-7614T1

PLUG

- cup, use with 90-7616T1 cover

2шт.
