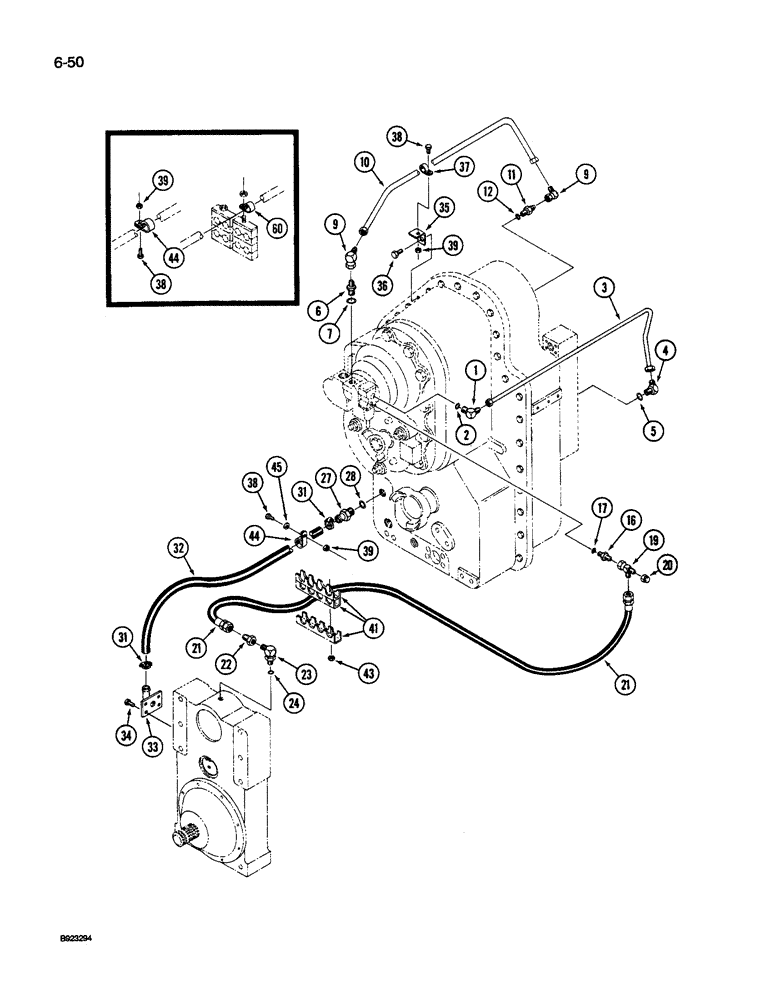

Запчасти Case IH 9260 (6-050) - TRANSMISSION LUBRICATION, TRANSMISSION TO PTO TRANSFER CASE (06) - POWER TRAIN

1

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

90-6691T1

TUBE,.5" OD

- range selector valve to PTO control valve (with PTO system only)

1шт.

4

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 3/4 flare x 9/16 inch o-ring, Includes: Ref. 5

1шт.

6

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 7 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 3/4 inch thread

2шт.

10

90-6889T1

TUBE,.5" OD

- regulator valve to PTO control valve (With PTO system only)

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss, Incl. Ref 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 9/16 x 3/4 inch thread, Includes: Ref. 17

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4 inch thread

1шт.

20

218-755

CAP,37 Degree, 3/4"-16

1шт.

21

31-2908

HOSE

- 116 inch, transmission to PTO transfer case (9250 Tractor)

1шт.

21

31-1605

HOSE

- 102 inch, transmission to PTO transfer case (9260 Tractor)

1шт.

22

31-2537

FITTING

CONNECTOR - orificed

1шт.

23

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4 inch thread, Includes: Ref. 24

1шт.

24

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

1шт.

27

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

CONNECTOR - straight, 1 5/8"-12 thread x 1 inch hose, Includes: Ref. 28

1шт.

28

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-5/8 ID x 1/8 inch

1шт.

31

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, #20, 0.81/1.75 Type F Worm

2шт.

32

31-2906

HOSE,1.00" ID x 109.00"

Return; Order S118383X, and Cut to Required Length 1.00" ID x 109.00"

1шт.

32

31-2884

HOSE,1.00" ID x 93.00"

Return; Order S118383X, and Cut to Required Length 1.00" ID x 93.00"

1шт.

33

90-7256T1

FITTING

ADAPTER - PTO transfer, Serial Range: case-hose

1шт.

34

413-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

- hex, 7/16 NC x 3/4 inch

1шт.

35

90-6894T1

SUPPORT

BRACKET - support, clamp

1шт.

36

SM8121240

BOLT

BOLT - hex, 12 mm - 1.75 x 40 mm

1шт.

37

31-1775

CLAMP

- hose

1шт.

38

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

39

425-106

NUT,3/8"-16, Cl 5

2шт.

41

50-3339T1

SHIN

CLAMP - hose (9260 Tractor)

3шт.

43

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (9250 Tractor)

2шт.

44

31-2361

MOUNTING CLIP

CLAMP - hose retaining (Replaces 31-1349)

1шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

60

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining (9260 Tractor)

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
