(3-008) - FUEL LINES, 9250 AND 9260 TRACTORS, P.I.N. JCB0028400 THROUGH JEE0033500

Запчасти Case IH 9260 (3-008) - FUEL LINES, 9250 AND 9260 TRACTORS, P.I.N. JCB0028400 THROUGH JEE0033500 (03) - FUEL SYSTEM

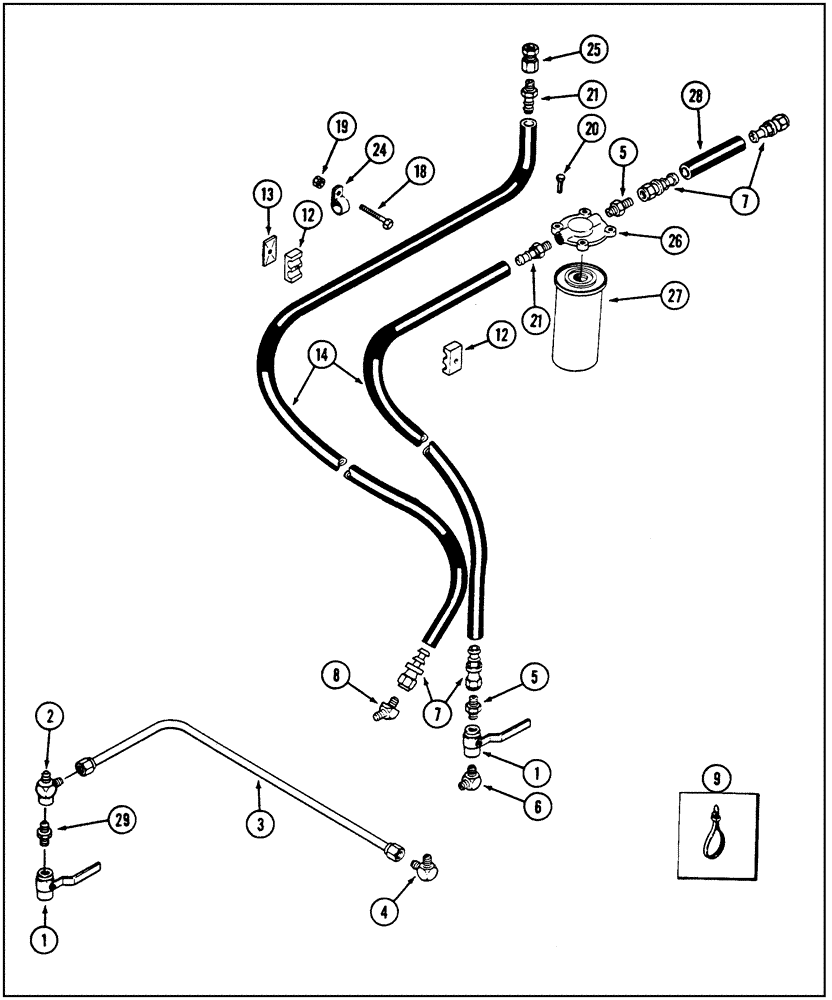

Схема запчастей Case IH 9260 - (3-008) - FUEL LINES, 9250 AND 9260 TRACTORS, P.I.N. JCB0028400 THROUGH JEE0033500 (03) - FUEL SYSTEM
5
1
12
20
13
5
27
14
29
25
28
4
21
3
6
12
7
19
7
8
26
9
21
2
1
24
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31-1267

SHUT-OFF VALVE

VALVE - shutoff

2шт.

2

31-1000

TEE

1/2 female PT x 1/2 male PT x 7/8 NF inch flare

1шт.

3

50-3491T1

HYD TUBE

TUBE - fuel, 23-15/32 inch long

1шт.

4

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

1шт.

5

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT

2шт.

6

217-1226

ELBOW,90 Degree, 1/2"-14 Male

- 90 degree, 1/2-14 inch NPT

1шт.

7

31-2976

FITTING

ADAPTER - straight, 7/8-14 female swivel x 31/64 ID barb end

4шт.

8

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, 7/8-14 flare x 1/2 inch PT

1шт.

9

D147773

CLAMP

STRAP - tie, hose retaining, replaces 31-2600

2шт.

12

50-2551T1

CLAMP

- hose, split, Includes: both halves, replaces 50-3396T1 clamp

6шт.

13

50-2533T1

PLATE

- clamp support

1шт.

14

31-2996

FUEL HOSE

HOSE, 5/8 (16 mm) ID x 135 inch (3429 mm) long, cut from 50-3418X1 bulk hose, see below

2шт.

18

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch

1шт.

19

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC, replaces 19-802

1шт.

20

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

21

31-2966

FITTING

ADAPTER - straight, special

2шт.

24

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Hose retaining 1 1/2", Insul, 3/8" Bolt

1шт.

25

218-1561

HYD CONNECTOR,37 Degree, Sw, 3/4"-16 x 1/2"-14 NPTF

ADAPTER - swivel, 3/4-16 swivel x 1/2 inch female PT

1шт.

26

90-3940T1

HEAD

- fuel filter

1шт.

27

90-3941T1

SEPARATOR

FILTER - fuel

1шт.

28

31-3016

FUEL HOSE,15.9mm ID x 95.3mm L

HOSE, 3-3/4 inch (95 mm) long, cut from 50-3418X1 bulk hose, see below

1шт.

29

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

NIPPLE - straight, 1/2 PT x 1-13/16 inch

1шт.

50-3418X1

HOSE

- bulk, 5/8 (16) ID x 360 inch (9144 mm) long

1шт.
