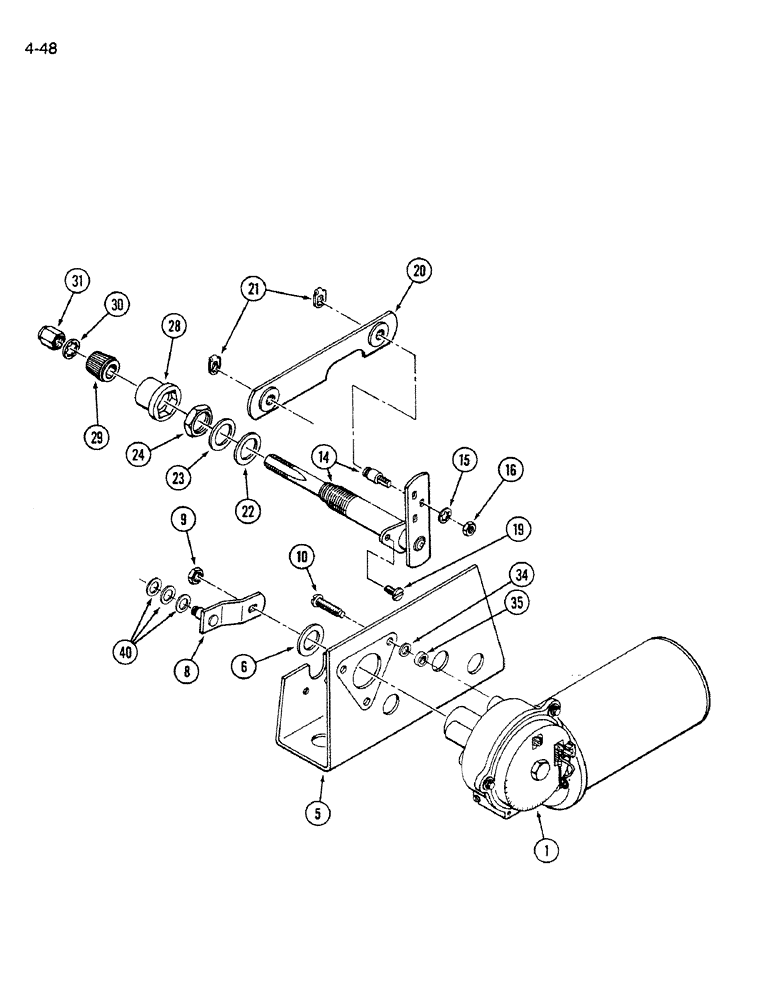

Запчасти Case IH 9270 (4-48) - WIPER DRIVE ASSEMBLY, FRONT WINDOWS (04) - ELECTRICAL SYSTEMS

60-6577T91

DRIVE

ASSEMBLY - wiper (Order components) (Replaces 60-5908T91), Includes: Ref. 1 - 40

1шт.

1

2-6866T1

MOTOR, ELECTRIC

MOTOR ASSEMBLY - wiper

1шт.

5

D72850

BRACKET

- mounting, motor

1шт.

6

D71411

WASHER

- wave

1шт.

8

60-5914T1

LEVER

- drive

1шт.

9

F44452

LOCK NUT

- hex, keps

1шт.

10

D72849

SCREW

- machine, keps round head

3шт.

14

2-6869T91

SHAFT ASSY.

DRIVE - shaft and pivot arm, Includes: Ref. 15 & 16

1шт.

15

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

1шт.

16

19-936

JAM NUT

- jam, 1/4 inch NF

1шт.

19

2-6870T1

SCREW

- machine, keps pan

1шт.

20

D71427

LINK,85.85mm L

- connecting

1шт.

21

D71414

CLIP

RETAINER - spring clip

2шт.

22

N6749

WASHER

- fiber

1шт.

23

N6750

WASHER

- steel

1шт.

24

60-3497T1

NUT

- hex, jam

1шт.

28

N6752

CAP

- shaft, rubber

1шт.

29

N6753

BLOCK DRIVER

DRIVER - knurled

1шт.

30

60-3501T1

WASHER

- lock, internal tooth

1шт.

31

N6754

NUT

- dome, 3/8 inch NF

1шт.

34

60-5913T1

SPACER

- motor

3шт.

35

19-6265T1

SPACER

- motor

3шт.

40

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch (Quantity 1 if equipped with side wipers)

3шт.
