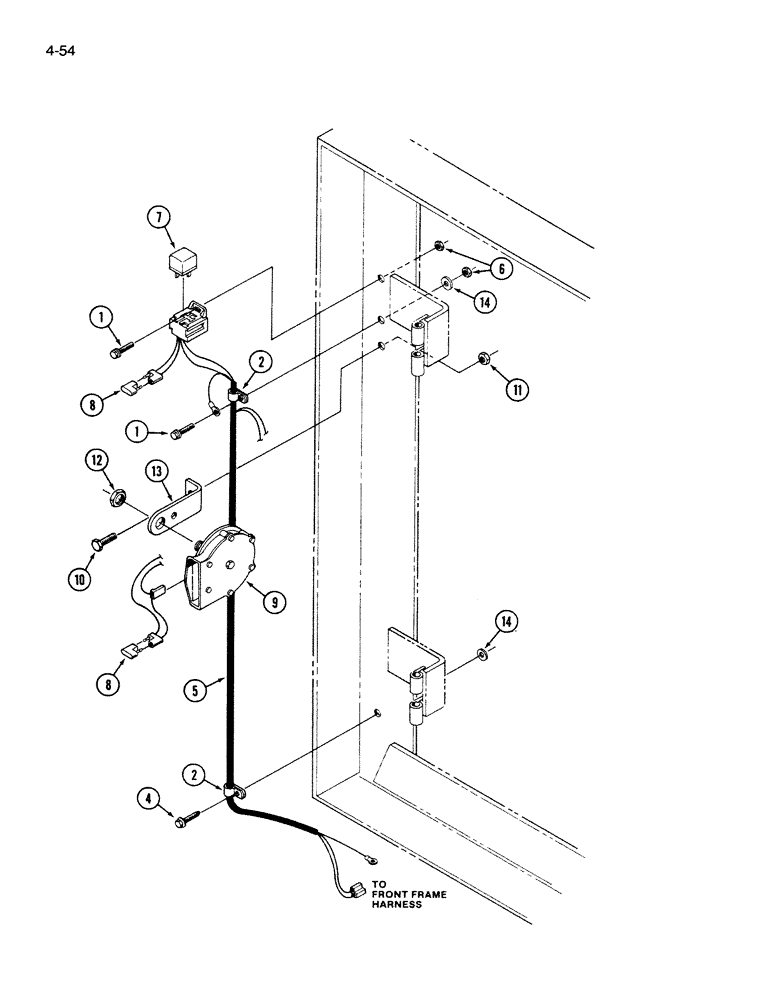

Запчасти Case IH 9270 (4-54) - HORN AND MOUNTING (04) - ELECTRICAL SYSTEMS

35-1752T91

HORN

KIT - horn, Includes: Ref. 1 - 14

1шт.

1

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

- machine, flanged, No. 10 NC x 3/4 inch (Replaces 9421295)

2шт.

2

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

2шт.

4

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - tapping, flanged, 1/4 NC x 1/2 inch

1шт.

5

60-6290T1

HARNESS

ASSEMBLY - horn

1шт.

6

19-5571

SERRATED NUT

- lock, keps, No. 10 NC

2шт.

7

20-2133T1

RELAY

- electrical, sealed

1шт.

8

22-738

DIODE

- electrical

2шт.

9

29-1003

HORN

- electrical

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

11

19-508

LOCK NUT

- hex lock, 5/16 inch NC

1шт.

12

L30866

LOCK NUT

- hex, 7/8 NC

1шт.

13

L73799

BRACKET

- mounting, horn

1шт.

14

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.
