(1-016) - LUBE HYDRAULICS POWER SHIFT TRACTOR, P.I.N. JCB0028400 & AFTER

Запчасти Case IH 9270 (1-016) - LUBE HYDRAULICS POWER SHIFT TRACTOR, P.I.N. JCB0028400 & AFTER (00) - PICTORIAL INDEX

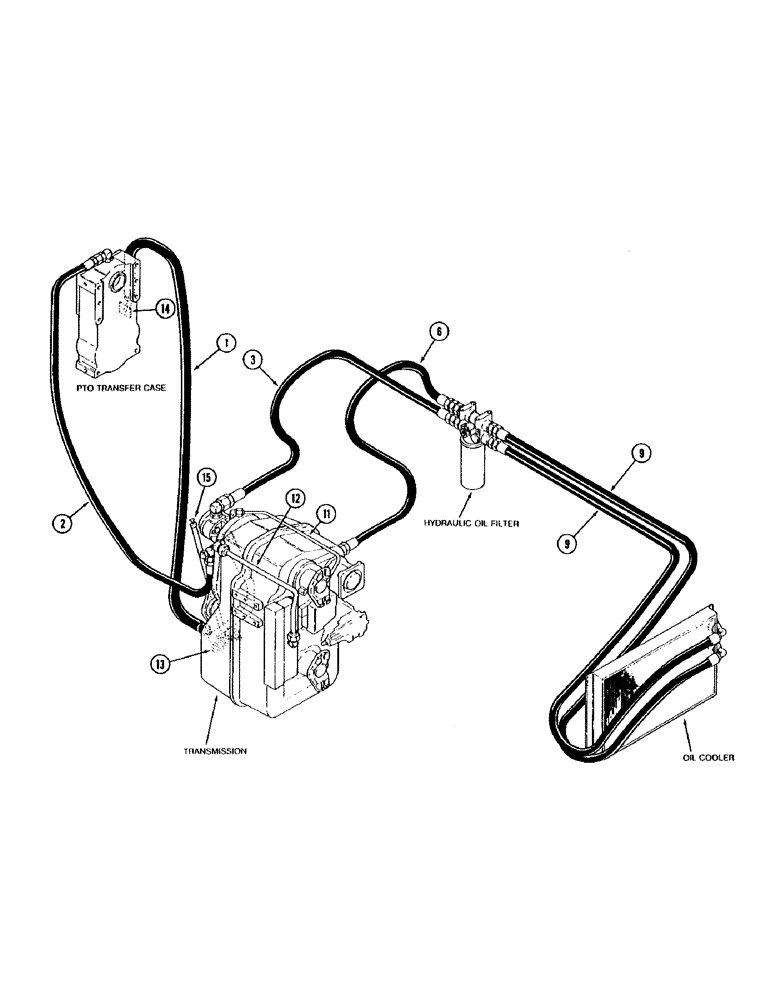

Схема запчастей Case IH 9270 - (1-016) - LUBE HYDRAULICS POWER SHIFT TRACTOR, P.I.N. JCB0028400 & AFTER (00) - PICTORIAL INDEX
9
9
3
2
14
13
11
6
12
15
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PTO Transfer Case Return Tube, Page 6-81

1шт.

2

PTO Transfer Case Lubrication Hose, Page 6-81

1шт.

3

Transmission Lubrication Supply Hose, Page 6-75

1шт.

6

Transmission Lubrication Supply Tube, Page 6-75

1шт.

9

Oil cooler Supply Hose, Page 6-75

1шт.

11

Transmission Lubrication Tube, Page 6-81

1шт.

12

Transmission Lubrication Tube, Page 6-81

1шт.

13

Transmission Lubricaiton Supply Tube, Page 6-75

1шт.

14

PTO Transfer Case Return Hose Tube, Page 6-81

1шт.

15

Transmission Fill Tube, Page 6-75

1шт.
