(09-02) - HOOD DECALS & NAMEPLATES

Запчасти Case IH KP-525 (09-02) - HOOD DECALS & NAMEPLATES (13) - DECALS

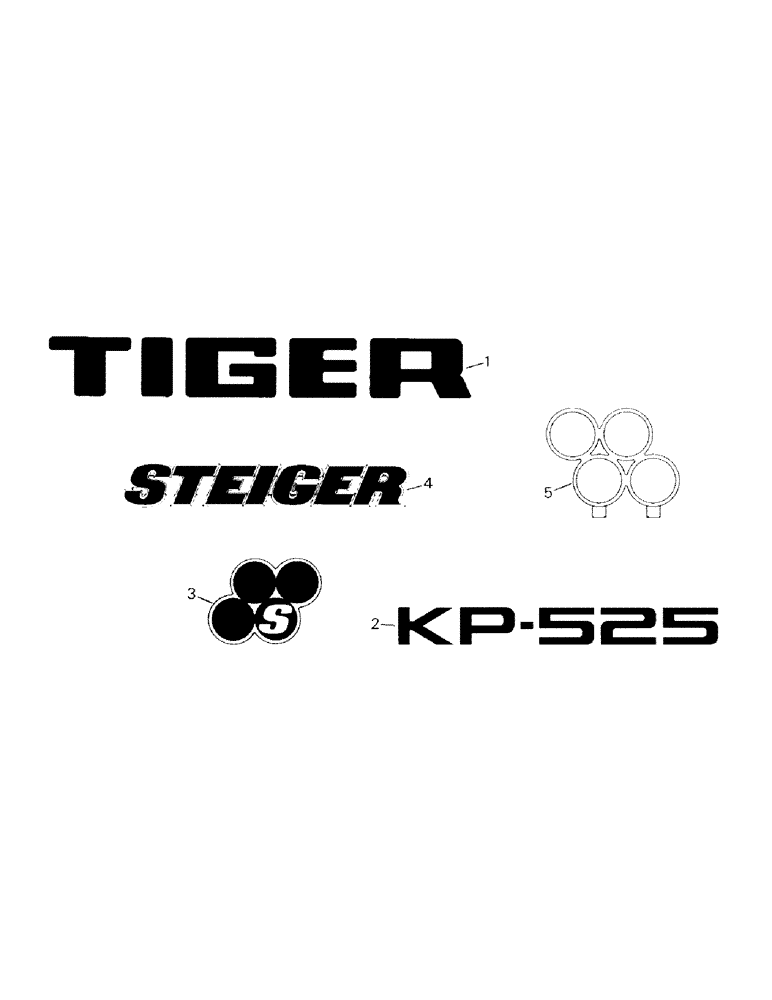

Схема запчастей Case IH KP-525 - (09-02) - HOOD DECALS & NAMEPLATES (13) - DECALS
5
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2-7075T1

DECAL

Tiger Nameplate

2шт.

2

2-7063T1

DECAL

KP-525 Nameplate

2шт.

3

2-5199T2

EMBLEM CASE/IH

Steiger Logo

2шт.

4

2-4585T2

TYPE PLATE

Steiger Nameplate

1шт.

5

1-549

HOOD

Sight (mounting hardware listed below)

1шт.

19-223

WASHER,1/4"

2шт.

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

Capscrew

2шт.

6

9420182

NUT

Self-Thread Nut (not shown) (used to mount Refs. 1-4)

1шт.
