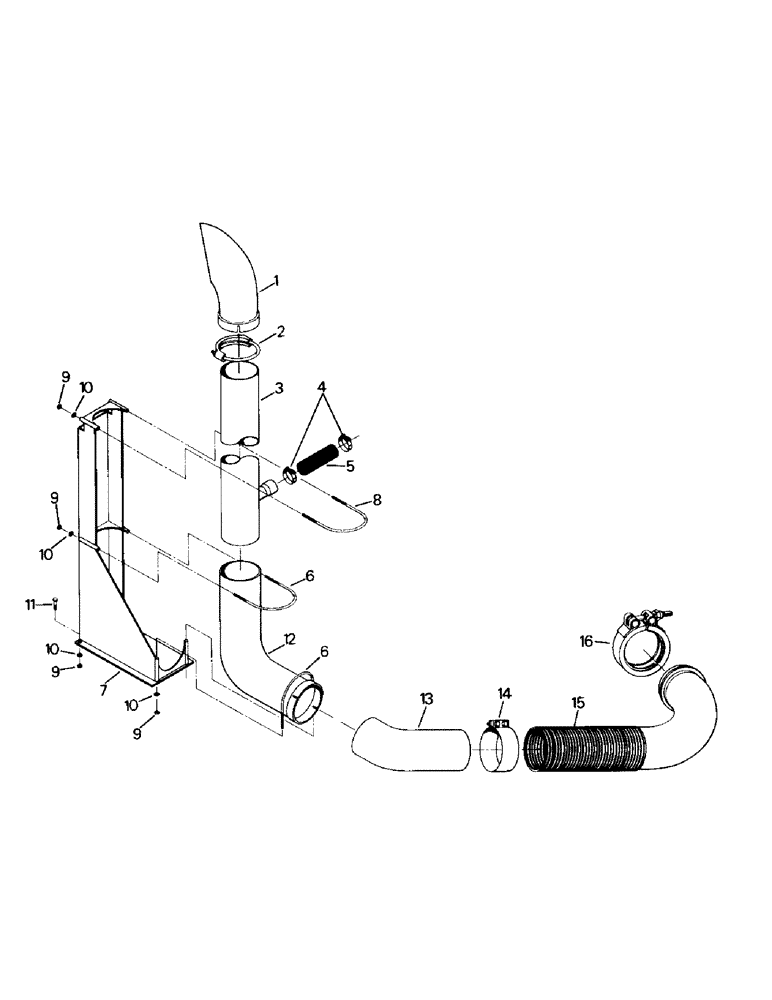

Запчасти Case IH KS-280 (04-10) - EXHAUST SYSTEM (04) - Drive Train

1

45-254

MUFFLER

Exhaust Stack

1шт.

2

31-1537

MOUNTING CLIP

Clamp

1шт.

3

45-196

PIPE, EXHAUST SYSTEM

Ejector

1шт.

4

32-137

CLAMP,#38, 2.06"-2.37", T-Bolt

2шт.

5

31-1080T1

TUBE,2.06" ID, 2.25" OD, 16.25" Length

Flex Tube

1шт.

6

32-322

U-BOLT,3/8" - 16 x 6.62"

2шт.

7

45-195

BRACKET

Ejector Bracket

1шт.

8

1-2948

BOLT

U-Bolt

1шт.

9

232-4136

LOCK NUT,3/8"-16, GC

8шт.

10

19-107

WASHER

8шт.

11

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew

2шт.

12

45-191

FITTING

Elbow

1шт.

13

2-2959T1

TUBE,5" OD

1шт.

14

31-1061

MOUNTING CLIP

Clamp Assy

1шт.

15

90-2463T1

TUBE

Flex Tube

1шт.

Use on Cat 3406 engine

1шт.

2-2958T1

TUBE

Flex Tube

1шт.

Use on Cummins 855 engine

1шт.

16

31-1316

MOUNTING CLIP

Clamp

1шт.

Use on Cat 3406 engine

1шт.

31-1324

CLAMP

1шт.

Use on Cummins 855 engine

1шт.

17

19-83

NUT,5/8"-11, G5

4шт.
