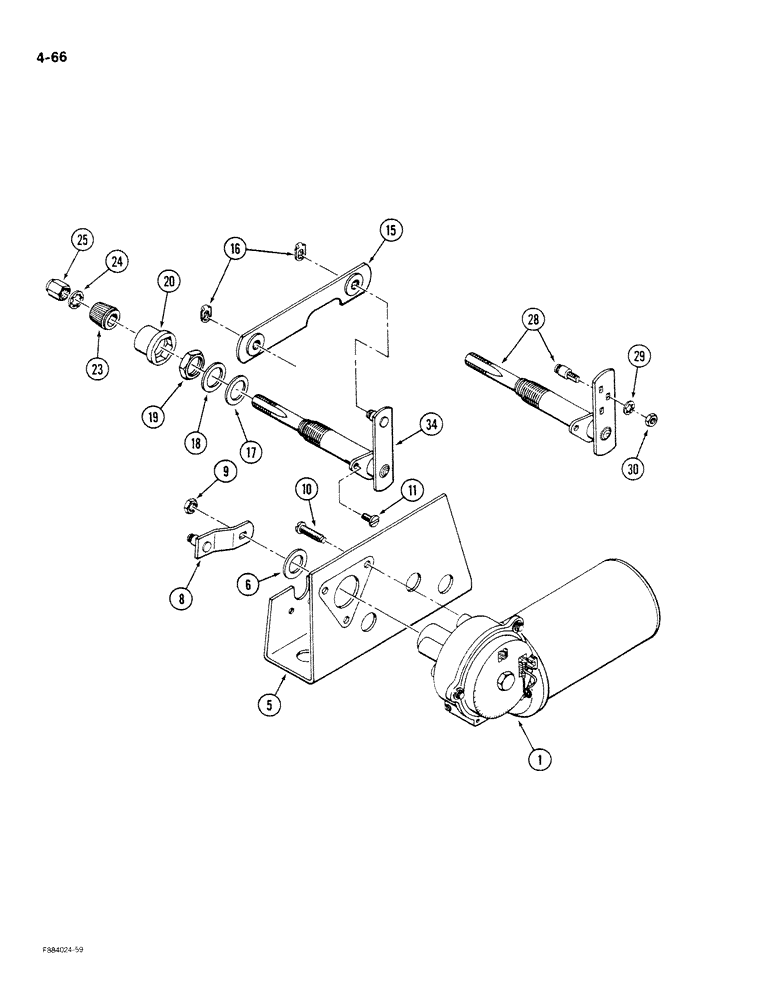

Запчасти Case IH STEIGER (4-066) - WIPER DRIVE ASSEMBLY, FRONT WINDOWS, PRIOR TO P.I.N. 17000270 (04) - ELECTRICAL SYSTEMS

60-1147T91

DRIVE

ASSEMBLY - wiper, front window, Includes Ref: 1-34

1шт.

60-1437T91

DRIVE

ASSEMBLY - wiper, left front side window (See Note), Includes Ref: 1-34

1шт.

60-1438T91

DRIVE

ASSEMBLY - wiper, right front side window (See Note), Includes Ref: 1-34

1шт.

1

F96765

WIPER MOTOR

MOTOR - wiper, front window

1шт.

1

2-6866T1

MOTOR, ELECTRIC

MOTOR ASSEMBLY - wiper, front side windows

1шт.

5

D72850

BRACKET

- mounting, motor

1шт.

6

1-2678

WASHER

- wave

1шт.

8

A36091

ARM

ASSEMBLY - drive

1шт.

9

F44452

LOCK NUT

- hex, keps

1шт.

10

D72849

SCREW

- machine, keps round head

3шт.

11

2-6870T1

SCREW

- machine, keps pan head

2шт.

15

D71427

LINK,85.85mm L

- connecting

1шт.

16

1-2685

CLIP

- spring, retaining

2шт.

17

60-3495T1

WASHER

- flat

1шт.

18

60-3496T2

WASHER

- flat

1шт.

19

60-3497T1

NUT

- hex, jam

1шт.

20

60-3498T1

COVER

CAP - seal

1шт.

23

60-3499T1

BLOCK DRIVER

DRIVER - knurled, wiper arm

1шт.

24

60-3501T1

WASHER

- lock, internal tooth

1шт.

25

60-3500T1

CAP

NUT - hex, cap

1шт.

28

2-6869T91

SHAFT ASSY.

DRIVE - shaft and pivot arm, front window, Includes Ref: 29, 30

1шт.

29

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, internal tooth, 1/4 inch

1шт.

30

19-936

JAM NUT

- hex, jam, 1/4 inch NF

1шт.

34

2-6868T1

SHAFT ASSY.

DRIVE - shaft and pivot arm, front side windows

1шт.
