(9-062) - SEAT, AIR SUSPENSION, CAB

Запчасти Case IH STEIGER (9-062) - SEAT, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS

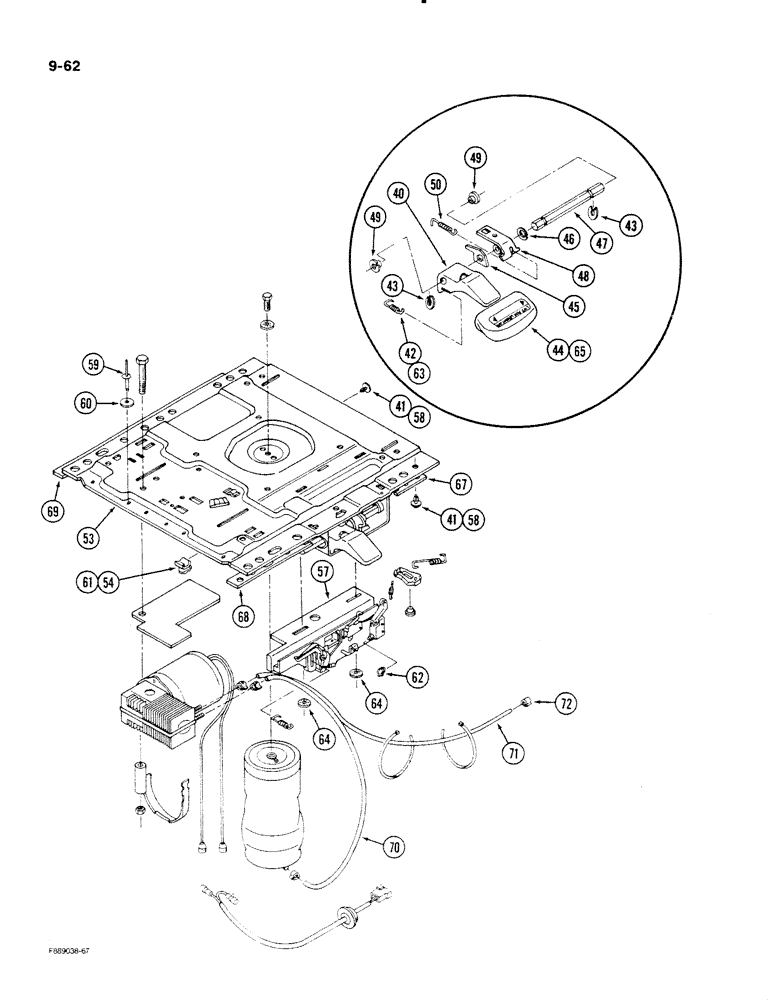

Схема запчастей Case IH STEIGER - (9-062) - SEAT, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS
67
46
72
45
68
64
59
62
65
41
63
58
54
57
42
53
58
49
44
70
69
60
50
49
41
47
64
71
40
61
43
43
48
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

60-4890T91

SLIDE

CARRIER ASSEMBLY - seat adjust (Continued from previous page), Includes Ref: 40-50

1шт.

40

NSS

NOT SOLD SEPARAT

LEVER - seat adjustment

1шт.

41

60-1613T1

FASTENER

- snap, boot

12шт.

42

60-4883T1

SPRING

- carrier return

1шт.

43

40-1157

RING

- retaining, M7

2шт.

44

60-4884T1

HANDLE

- raise and lower

1шт.

45

NSS

NOT SOLD SEPARAT

RATCHET

1шт.

46

60-4892T1

WASHER

1шт.

47

NSS

NOT SOLD SEPARAT

SHAFT - pivot

1шт.

48

NSS

NOT SOLD SEPARAT

ANGLE

1шт.

49

60-4887T1

FLANGED BEARING

BEARING, Flanged

2шт.

50

60-4891T1

SPRING

- return

1шт.

53

60-4877T91

SEAT

MOUNT - upper seat, Includes Ref:54

1шт.

54

60-4881T1

CLIP,ELECTRICAL

CLIP - cable retaining

2шт.

60-4894T92

SUPPORT

MOUNT ASSEMBLY - slide bar, Includes Ref: 57-65

1шт.

57

NSS

NOT SOLD SEPARAT

MOUNT - slide bar

1шт.

58

60-1613T1

FASTENER

- snap, boot

12шт.

59

1-2503

RIVET,Pop, .146" x .425"

- pop, 5/32 x 1/4 inch

1шт.

60

19-699

WASHER,3/16"

- flat, 3/16 x 1/2 x 3/64 inch

1шт.

61

60-4881T1

CLIP,ELECTRICAL

CLIP - cable retaining

2шт.

62

60-4895T1

CLAMP

- hose

1шт.

63

60-4883T1

SPRING

- carrier return

1шт.

64

60-4882T1

RING, SNAP

RETAINER - push-on

2шт.

65

60-4884T1

HANDLE

- raise and lower

1шт.

67

60-4913T1

PLATE

STRIP - backup, boot

1шт.

68

60-4912T1

PLATE

STRIP - backup, boot

1шт.

69

60-1632T1

PLATE

STRIP - backup, boot

1шт.

70

60-4898T1

HOSE,450.00 mm

1шт.

71

60-4899T1

HOSE

- 650 mm

1шт.

72

60-4895T1

CLAMP

- hose

1шт.
