(4-08) - OVERHEAD CAB HARNESS, ROPS

Запчасти Case IH STEIGER (4-08) - OVERHEAD CAB HARNESS, ROPS (04) - ELECTRICAL SYSTEMS

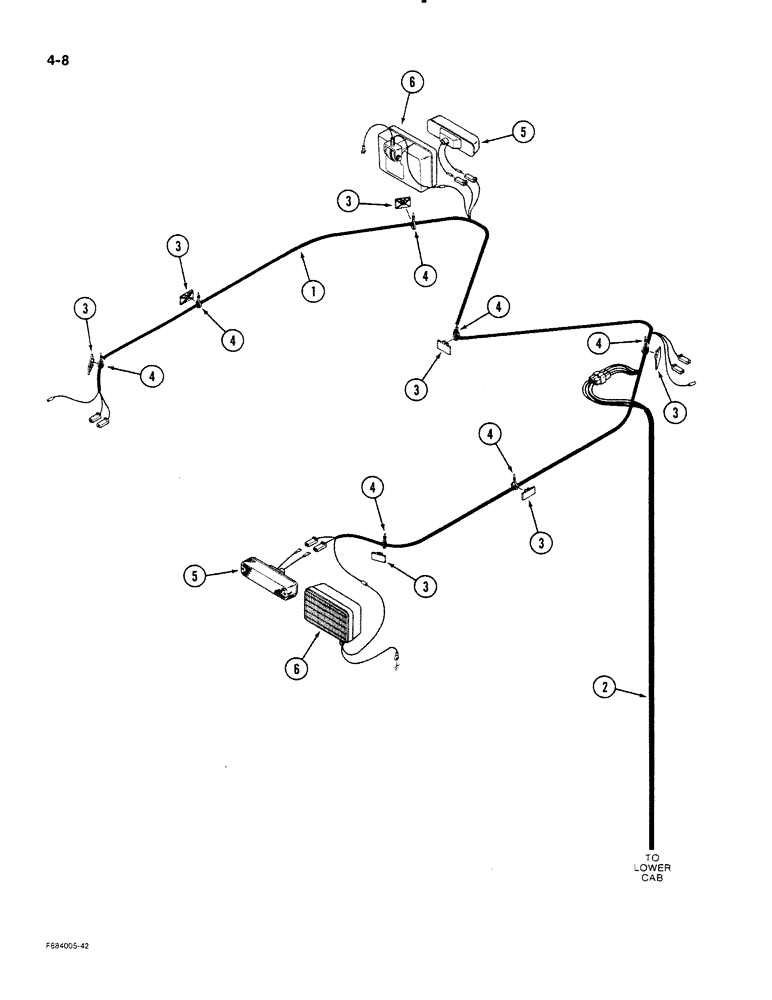

Схема запчастей Case IH STEIGER - (4-08) - OVERHEAD CAB HARNESS, ROPS (04) - ELECTRICAL SYSTEMS
3
4
4
4
5
5
4
3
2
3
3
3
6
4
1
6
3
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-2483T1

HARNESS

- overhead

1шт.

2

20-2476T1

HARNESS

- main cab (See Figure: 4-4)

1шт.

3

22-823

MOUNT

MOUNT - adhesive backed

7шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

5

REF

INSTRUCTION

LIGHT ASSEMBLY - warning (See Figure: 4-42)

4шт.

6

REF

INSTRUCTION

LIGHT ASSEMBLY - field (See Figure: 4-42)

4шт.

Выбрано товаров: 6
