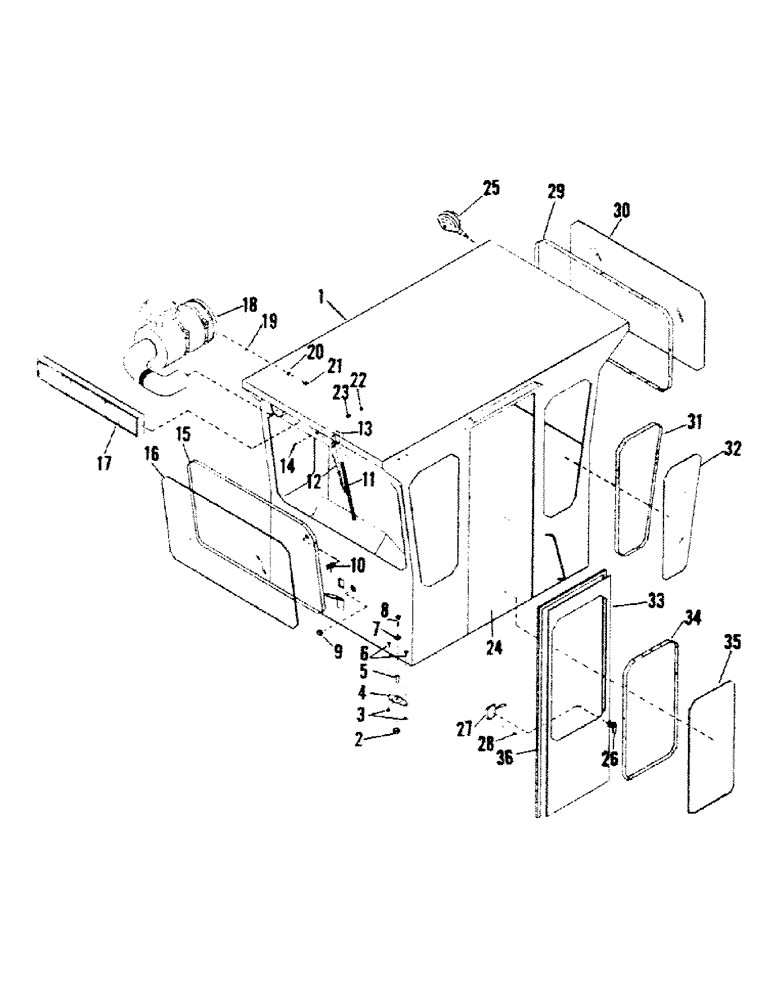

Запчасти Case IH STEIGER (01-01) - CAB - SERIES I, EARLY (10) - CAB

1

4-78

CAB FRAME

1шт.

2

19-5364

NUT

3/4 NC

4шт.

3

19-82

LOCK NUT

1/2 NC

8шт.

4

64-215

INSULATOR

ISOLATOR, replaces 24-061

4шт.

Superseded, old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

The cab mount called out here will replace an earlier rectangular mount P/N 24-034, 4 bolt mount, but all of ref. 2 - 8 must be ordered. To install this mount on those cabs will require the center hole to be enlarged to 3/4" on the cab

1шт.

5

4-265

SPACER

4шт.

6

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

CAPSCREW, 1/2NC x 1-1/2 gr 8

8шт.

7

19-326

WASHER

4шт.

8

19-325

BOLT,Hex, 3/4" - 10 x 4", Gr 8

CAPSCREW

4шт.

9

22-60

POSTER

GROMMET

1шт.

10

22-59

CLAMP

1шт.

11

64-92

HALF BLADE

BLADE, wiper

1шт.

The wiper blade called out here is a 16" blade. Some early Series I used a shorter blade which is no longer available. When ordering for those, the arm must be ordered also as this blade will not fit old arm.

1шт.

12

64-91

ARM

wiper

1шт.

The wiper blade called out here is a 16" blade. Some early Series I used a shorter blade which is no longer available. When ordering for those, the arm must be ordered also as this blade will not fit old arm.

1шт.

13

24-22

MOTOR

wiper

1шт.

14

19-307

SCREW,Hex, #10 - 32 x 1/2", Gr 2

10-32 NC

1шт.

15

4-297

PROFILE

MOLDING, front

1шт.

16

24-130

GLASS

front

1шт.

17

24-29

FILTER

cab air

1шт.

18

9-57

AIR CLEANER

(see figure 3-9)

1шт.

96-60

ELEMENT

1шт.

19

9-17

ADAPTER

CAPSCREW, 3/8 NC x 1

4шт.

20

19-117

LOCK WASHER,3/8"

3/8"

4шт.

21

19-78

SPECIAL NUT,3/8"-16, G5

3/8 NC

4шт.

22

19-308

NUT,#10 - 32

10-32

1шт.

23

19-297

LOCK WASHER,#10

#10

1шт.

24

4-213

FLOOR BOARD

1шт.

25

22-107

LAMP

LIGHT, flasher

2шт.

26

24-6

HANDLE

door, outside

2шт.

27

24-45

LATCH

LH

1шт.

24-44

LOCK

LATCH, RH

1шт.

28

19-127

RIVET

8шт.

29

4-294

MOLDING

MOULDING, rear window

1шт.

30

24-129

GLASS

rear window

1шт.

31

4-295

PROFILE

MOULDING, side window

4шт.

32

24-127

GLASS

side window

4шт.

33

4-171

DOOR, RH

1шт.

4-172

DOOR, LH

1шт.

34

4-296

MOLDING

MOULDING, door window

2шт.

35

24-128

GLASS

door

2шт.

36

4-465

SEALING STRIP

WEATHER STRIPPING (24-016) (E)

2шт.

Superseded, old P/N is not used any longer, the new P/N is to be used in all cases. The old P/N should be removed from inventory. It is recommended that old part not be used under any circumstances

1шт.
