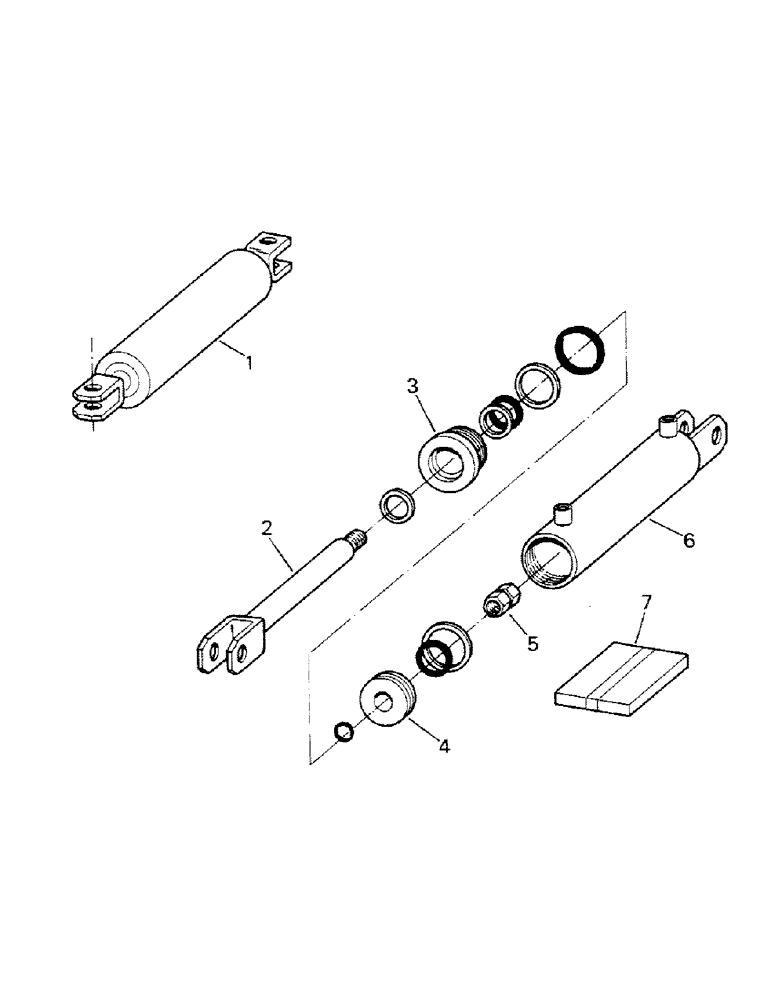

Запчасти Case IH STEIGER (08-15[1]) - ALL FOLLOWING CYLS. HAVE 1-1/2" SHAFT. (07) - HYDRAULICS

1

18-23

CYLINDER

STEER CYL. (identify by 1-1/8" shaft, snap ring on gland & pipe ports) (used 1969 & 1970)

2шт.

2

18-103

SHAFT, 1-1/8"

1шт.

3

18-106

GLAND

1шт.

4

18-104

PISTON

1шт.

5

18-102

NUT, (single only)

1шт.

6

18-101

BARREL, pipe ports

1шт.

7

18-105

SEAL KIT

1шт.

1

18-809

STEER CYL. (identify by square end on barrel clevis, pipe ports & snap ring on gland) (used on very few 1971 models)

2шт.

2

18-811

SHAFT ASSY.

SHAFT

1шт.

3

18-810

GLAND

1шт.

4

18-809

PISTON

1шт.

5

18-808

NUT (single only)

1шт.

6

18-101

BARREL

1шт.

7

18-812

KIT

SEAL KIT

1шт.

1

18-439

STEERING CYLINDER

STEER CYL. (can have either snap ring or threaded gland (has pipe ports)

2шт.

18-1147

CYLINDER

STEER CYL. (same as 18-439 w/threaded gland but has o-ring ports.

2шт.

2

18-448

SHAFT

1шт.

3

18-447

X

GLAND (snap ring style)

1шт.

18-486

GLAND

(threaded)

1шт.

4

18-446

PISTON

1шт.

5

18-445

NUT (single only)

1шт.

6

18-101

BARREL (for snap ring gland)

1шт.

18-485

BARREL (threaded & w/pipe ports)

1шт.

18-1228

BARREL (threaded & w/o-ring ports)

1шт.

7

18-449

KIT

SEAL KIT (w/snap ring)

1шт.

18-462

SEAL KIT

SEAL KIT (w/o snap ring)

1шт.
