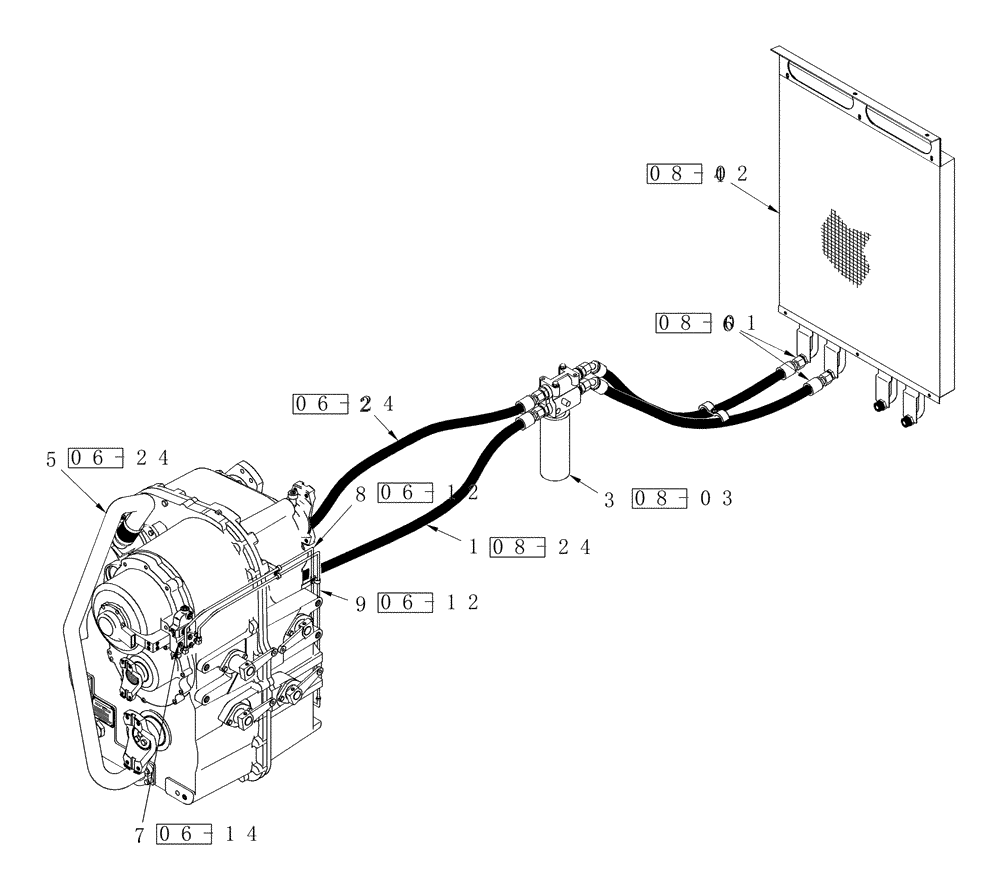

Запчасти Case IH STEIGER 335 (01A-01) - HYDRAULICS - MANUAL SHIFT TRANSMISSION AN PTO CLUTCH LUBRICATION (00) - PICTORIAL INDEX

1

HOSE, Transmission, Regulator Valve Supply, See Figure 06-24

1шт.

2

HOSE, Oil Pump to LH Transmission Filter, See Figure 06-24

1шт.

3

FILTER Transmission, LH, See Figure 08-03

1шт.

4

COOLER Hydraulic Oil, See Figure 08-02

1шт.

5

TUBE Transmission Suction, Pump Supply, See Figure 06-24

1шт.

6

HOSE Cooler Supply and Outlet, Filter to Cooler, See Figure 08-01

1шт.

7

VALVE ASSY., PTO Control, See Figure 06-14

1шт.

8

TUBE, PTO Valve, Pressure Supply, See Figure 06-12

1шт.

9

TUBE, PTO Valve,Lubrication Supply, See Figure 06-12

1шт.
