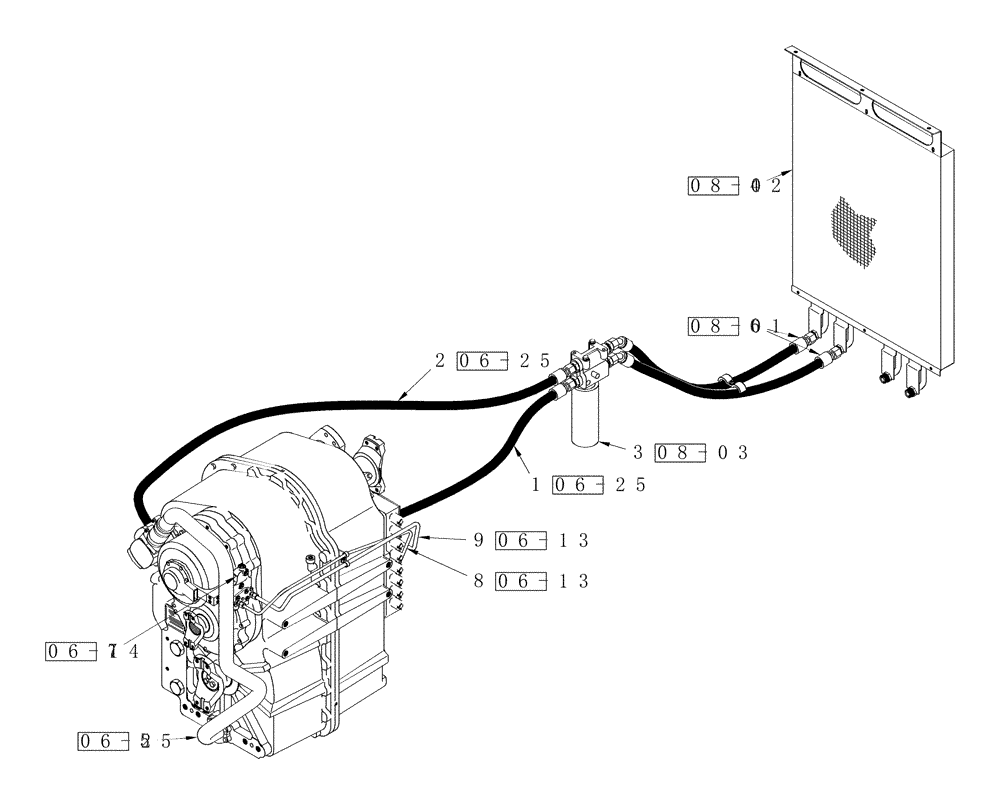

Запчасти Case IH STEIGER 335 (01A-02) - HYDRAULICS - POWER SHIFT TRANSMISSION AND PTO CLUTCH LUBE WITHOUT ACCUSTEER (00) - PICTORIAL INDEX

1

HOSE Transmission, Regulator Valve Supply, See Figure 06-25

1шт.

2

HOSE Pump To Filter, See Figure 06-25

1шт.

3

FILTER Transmission, Left-Hand, See Figure 08-03

1шт.

4

COOLER Hydraulic Oil, See Figure 08-02

1шт.

5

TUBE Transmission, Pump Supply, See Figure 06-25

1шт.

6

HOSE Cooler Supply and Outlet, See Figure 08-01

1шт.

7

VALVE ASSY PTO Control, Filter to Cooler, See Figure 06-14

1шт.

8

TUBE PTO Valve, Pressure Supply, See Figure 06-13

1шт.

9

TUBE PTO Valve, Lube Supply, See Figure 06-13

1шт.
