(01A-07) - HYDRAULICS - POWER TAKEOFF TRANSFER CASE LUBRICATION

Запчасти Case IH STEIGER 335 (01A-07) - HYDRAULICS - POWER TAKEOFF TRANSFER CASE LUBRICATION (00) - PICTORIAL INDEX

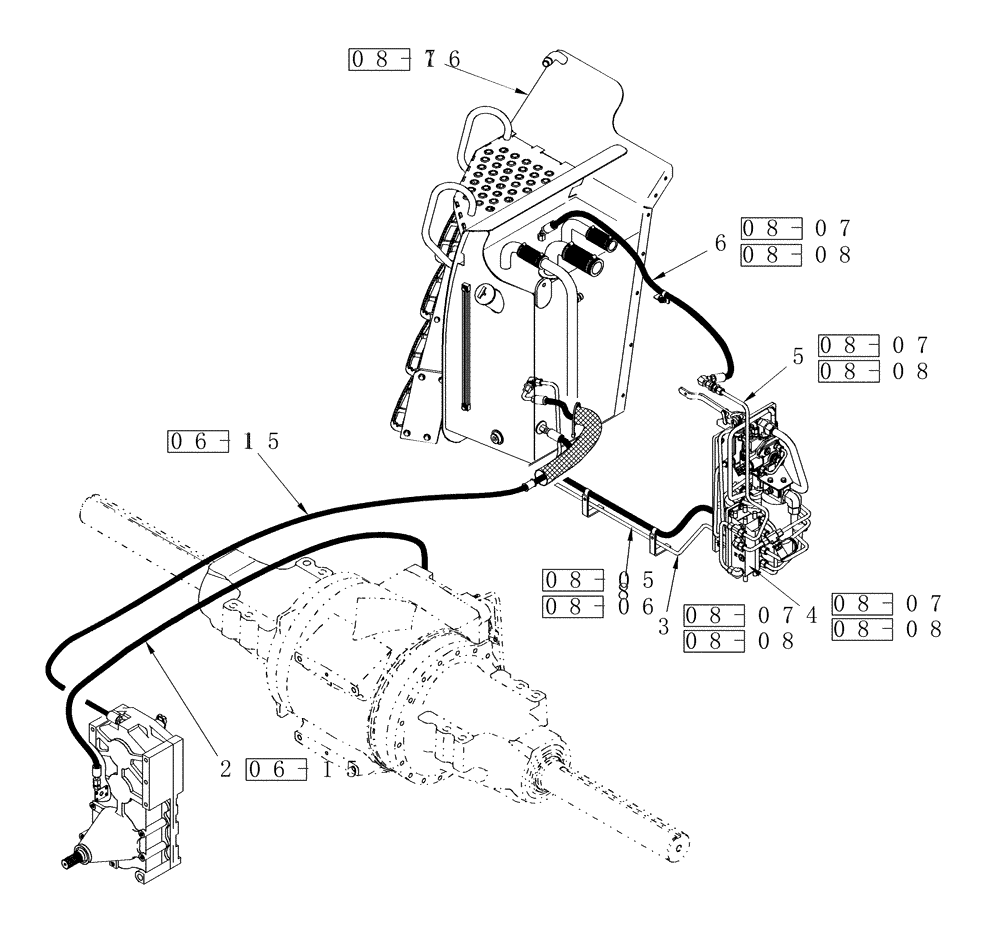

Схема запчастей Case IH STEIGER 335 - (01A-07) - HYDRAULICS - POWER TAKEOFF TRANSFER CASE LUBRICATION (00) - PICTORIAL INDEX
7
08-07
08-08
08-07
08-08
08-07
08-08
8
1
08-05
08-08
08-07
06-15
06-15
08-16
08-06
2
6
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hose, Supply, Transfer Case from Axle Air / Lube Pump, See Figure 06-15

1шт.

2

Hose, Transfer Case to Rear Differential, See Figure 06-15

1шт.

3

Tube, Rear Axle Air / Lube Supply, See Figure 08-07 & 08-08

1шт.

4

Pump, Axle Air / Lube, See Figure 08-07 & 08-08

1шт.

5

Tube, Air Supply, Tank to Air / Lube Motor, See Figure 08-07 & 08-08

1шт.

6

Hose, Air Supply, Tank to Air / Lube Motor, See Figure 08-07 & 08-08

1шт.

7

Tank, Hydraulics, See Figure 08-16

1шт.

8

Hose, regulator Vavle Return to Tank, See Figure 08-05 & 08-06

1шт.
