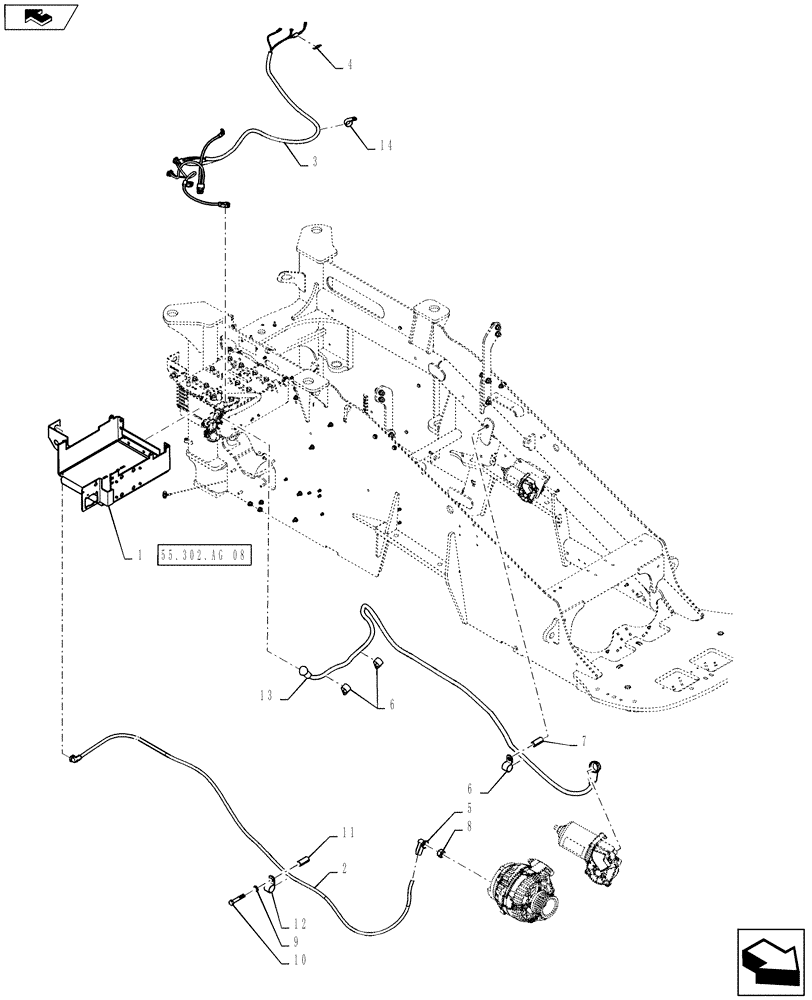

Запчасти Case IH STEIGER 350 (55.302.AG[05]) - BATTERY - TRAY & CABLES - 9L - STEIGER 350 W/SUSPENDED CAB (55) - ELECTRICAL SYSTEMS

1

84492742

BATTERY TRAY

1шт.

2

84384403

POS BATTERY CABLE

Alternator, 9L

1шт.

3

84151624

CABLE

Cab Power and Ground

1шт.

4

87455597

FUSE,200A

200A

1шт.

5

L126713

BOOT

1шт.

6

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

4шт.

7

87447010

SPACER

SEC Aux. Cover

1шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

10

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

11

L126936

SPACER

1шт.

12

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

13

84478878

CABLE

Starter, 9L

1шт.

14

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.
