(27.100.020) - VAR - 424823, 424824 - REAR AXLE, 315 SERIES

Запчасти Case IH STEIGER 370 (27.100.020) - VAR - 424823, 424824 - REAR AXLE, 315 SERIES (27) - REAR AXLE SYSTEM

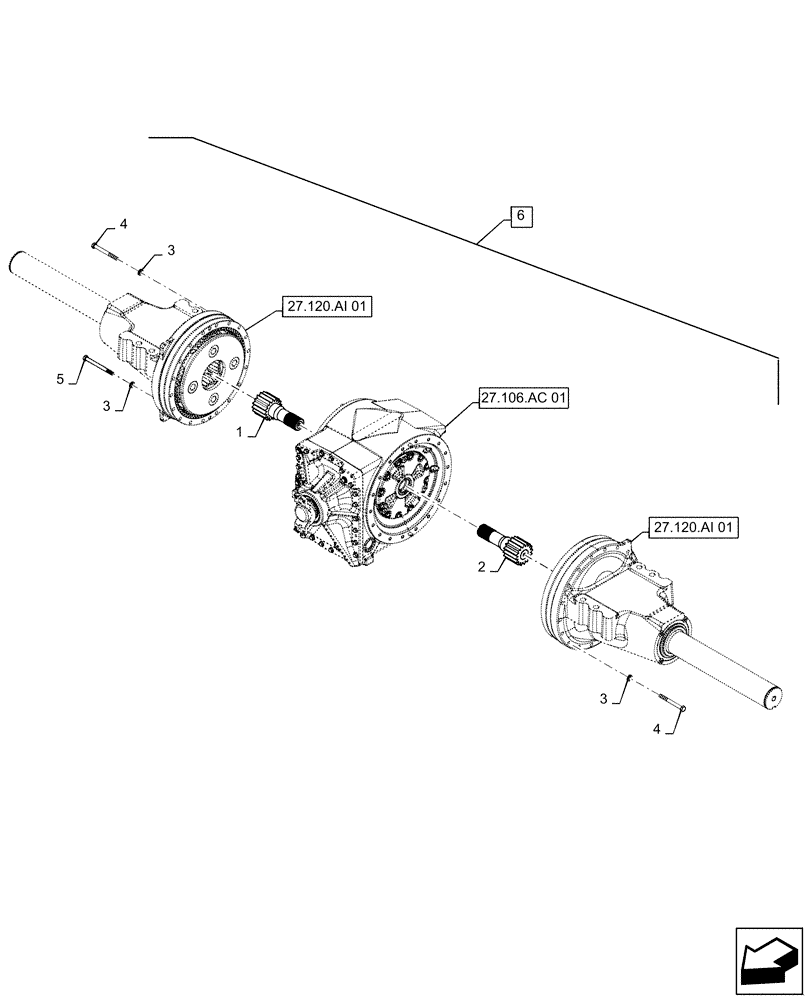

Схема запчастей Case IH STEIGER 370 - (27.100.020) - VAR - 424823, 424824 - REAR AXLE, 315 SERIES (27) - REAR AXLE SYSTEM
27.106.ac 01
4
3
3
3
4
1
5
2
6
27.120.ai 01
27.120.ai 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

310692A1

SHAFT

Sun Gear, 16T, Long

1шт.

2

310693A1

SHAFT

Sun Gear, 16T, Short

1шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

36шт.

4

84233538

BOLT,Hex, M16 x 150mm, Cl 12.9

33шт.

5

390873A1

SPECIAL BOLT

M16 x 180mm, Class 10.9

3шт.

6

47407615

REAR AXLE

Complete, 315 Series, Without Diff Lock

1шт.

6

47407619

REAR AXLE

Complete, 315 Series, With Diff Lock

1шт.
