(27.100.040) - VAR - 424823, 424824 - REAR AXLE, 425 SERIES

Запчасти Case IH STEIGER 370 (27.100.040) - VAR - 424823, 424824 - REAR AXLE, 425 SERIES (27) - REAR AXLE SYSTEM

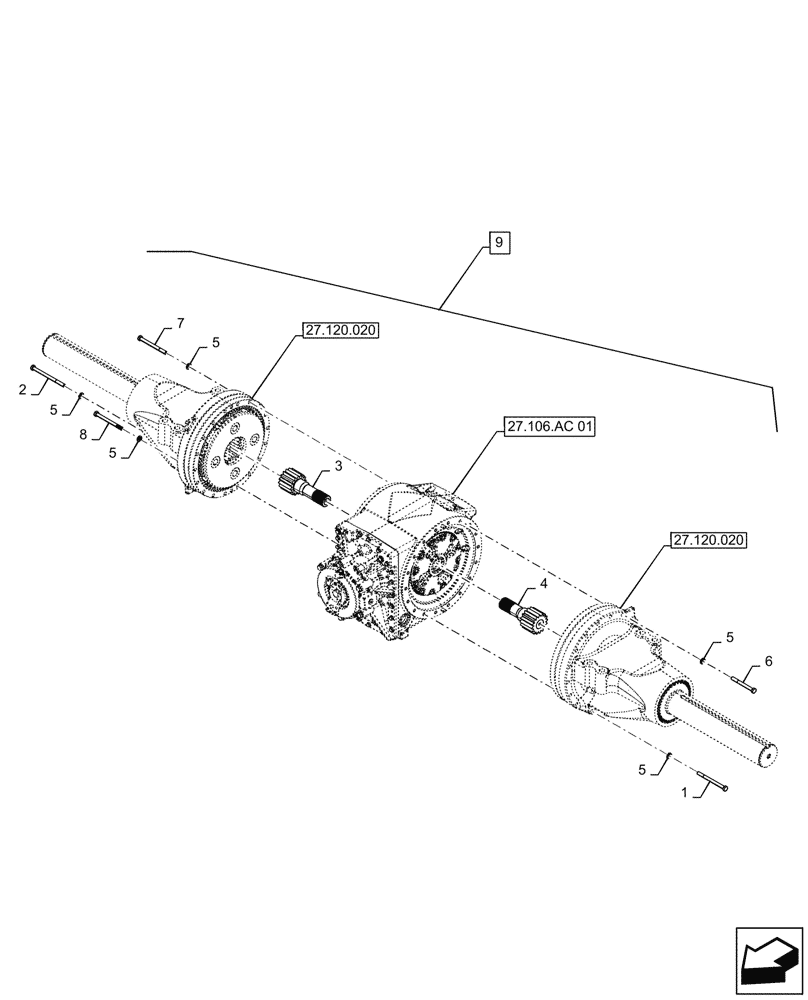

Схема запчастей Case IH STEIGER 370 - (27.100.040) - VAR - 424823, 424824 - REAR AXLE, 425 SERIES (27) - REAR AXLE SYSTEM
27.106.ac 01
9
5
8
7
5
1
4
3
6
2
5
5
5
27.120.020
27.120.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84233540

BOLT,Hex, M16 x 190mm, Cl 12.9

4шт.

2

84233541

BOLT,Hex, M16 x 220mm, Cl 12.9

4шт.

3

310692A1

SHAFT

Sun Gear, 16T, Long

1шт.

4

310693A1

SHAFT

Sun Gear, 16T, Short

1шт.

5

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

36шт.

6

84233538

BOLT,Hex, M16 x 150mm, Cl 12.9

14шт.

7

84233539

BOLT,Hex, M16 x 180mm, Cl 12.9

11шт.

8

390873A1

SPECIAL BOLT

M16 x 180mm L, Cl 10.9

3шт.

9

47812936

REAR AXLE

Assy, 425 Series, W/O Diff Lock

1шт.

9

47812937

REAR AXLE

Assy, 425 Series, W/ Diff Lock

1шт.
