(90.110.03) - MONITOR - MOUNTING - FRED II DISPLAY MOUNT

Запчасти Case IH STEIGER 400 (90.110.03) - MONITOR - MOUNTING - FRED II DISPLAY MOUNT (90) - PLATFORM, CAB, BODYWORK AND DECALS

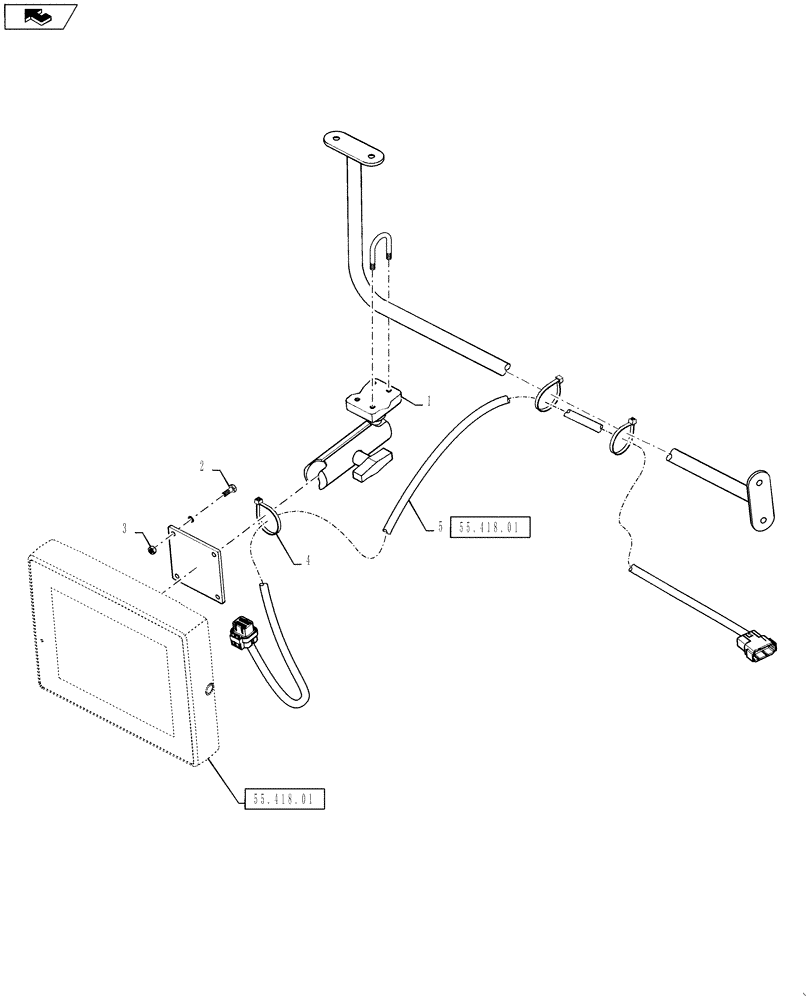

Схема запчастей Case IH STEIGER 400 - (90.110.03) - MONITOR - MOUNTING - FRED II DISPLAY MOUNT (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
55.418.01
1
5
home
3
55.418.01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87386396

MOUNT

FRED II Monitor - Ref. Figure 55.418.01

1шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

3

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

5

87714577

HARNESS

Display - Ref. Figure 55.418.01

1шт.
