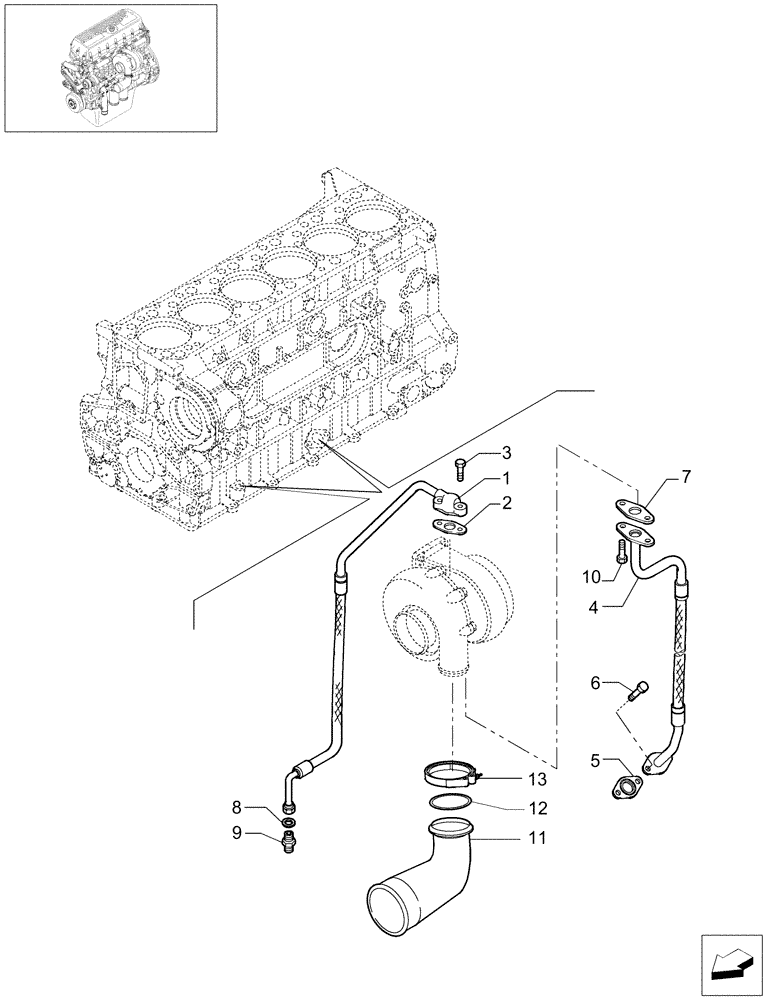

Запчасти Case IH STEIGER 435 (02-51) - TURBOCHARGER PIPES, STEIGER 385 / 435 (02) - ENGINE

1

504139847

RIGID TUBE

Delivery Oil Line

1шт.

2

61318303

GASKET

1шт.

3

16586625

BOLT,M8 x 35mm

M8 x 35

2шт.

4

504102835

RIGID TUBE

Return Oil Line

1шт.

5

99475979

GASKET

Oil Line

1шт.

6

16586325

BOLT,Hex, M8 x 20mm, Cl 8.8

M8X1.25X20

2шт.

7

98412509

GASKET,0.8mm Thk

Oil Line

1шт.

8

41031569

FITTING

1шт.

9

99489019

SEALING WASHER

1шт.

10

16586425

BOLT,M8 x 25mm

M8 x 25

2шт.

11

61318365

ELBOW

1шт.

12

17284681

GASKET

1шт.

13

4800661

COLLAR

1шт.
