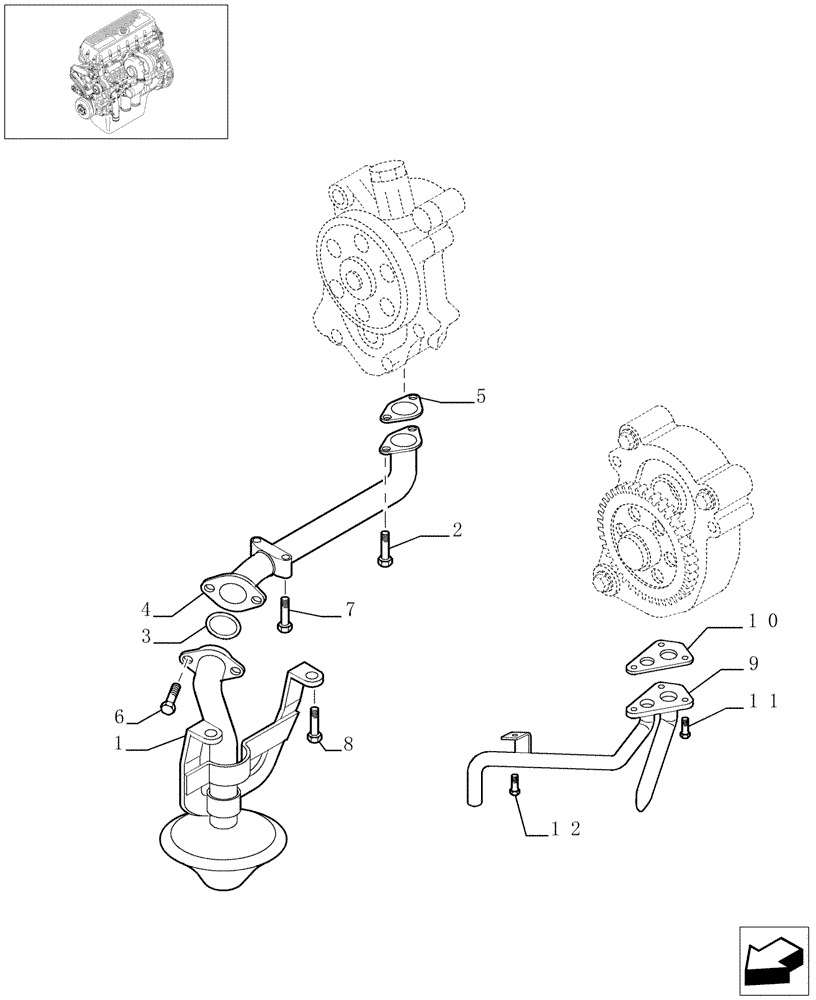

Запчасти Case IH STEIGER 435 (02-61) - OIL PUMP PIPING, STEIGER 385 / 435 & 485 (02) - ENGINE

1

99475585

STRAINER ELEMENT

Oil Pump

1шт.

2

16592225

BOLT,M8 x 55mm

M8X55 mm

2шт.

3

70925919

O-RING,-222, Cl 7, 1.484" ID x .139" Thk

D=37.69 X3,53 mm

1шт.

4

99475589

RIGID TUBE

Oil Line

1шт.

5

500343518

GASKET

Oil Pump

1шт.

6

16586225

BOLT,M8 x 16mm

2шт.

7

16592525

BOLT,M8 x 1.25 x 70mm

M8X70 mm

2шт.

8

16673834

SCREW,M8 x 30mm

M8X30 mm

2шт.

9

500388917

TUBE

Auxiliary Oil Pump

1шт.

10

500388968

GASKET

Auxiliary Oil Pump

1шт.

11

16586325

BOLT,Hex, M8 x 20mm, Cl 8.8

M8X1,25X20

3шт.

12

2852323

SCREW,M8 x 1.25 x 14mm

M8 x 14

1шт.
