(88.035.15) - DIA KIT, ADDITIONAL PRODUCTS - 3/4" COUPLER KIT

Запчасти Case IH STEIGER 450 (88.035.15) - DIA KIT, ADDITIONAL PRODUCTS - 3/4" COUPLER KIT (88) - ACCESSORIES

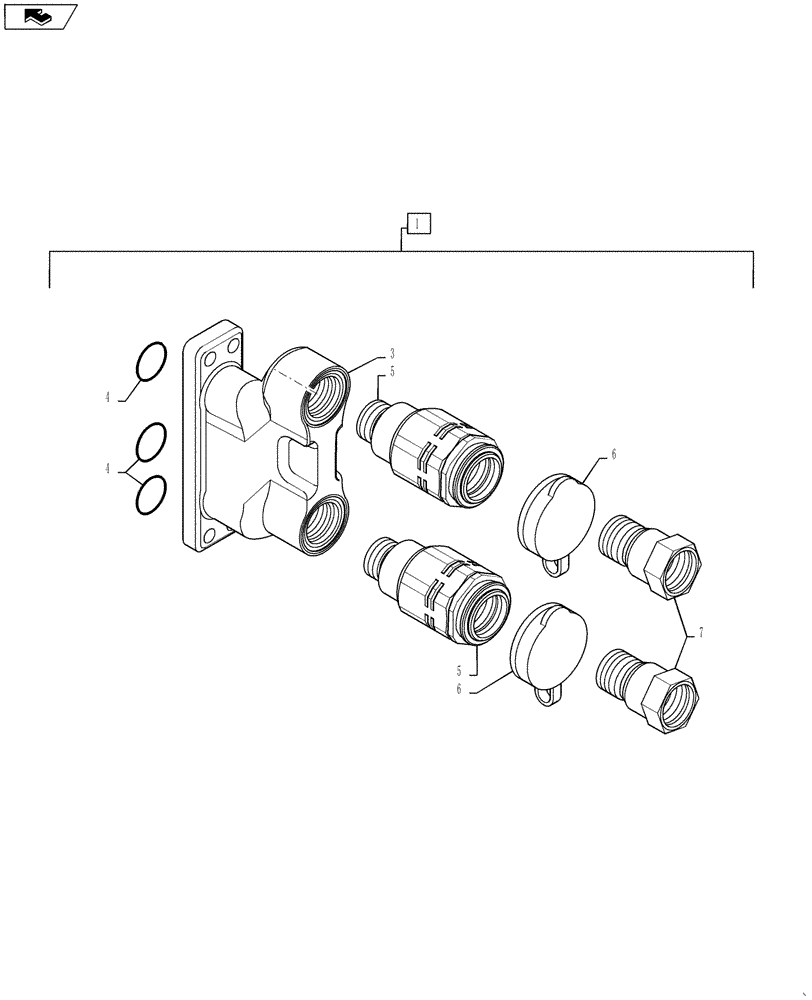

Схема запчастей Case IH STEIGER 450 - (88.035.15) - DIA KIT, ADDITIONAL PRODUCTS - 3/4" COUPLER KIT (88) - ACCESSORIES
4
home
7
4
1
5
6
6
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84335908

KIT

DIA Kit - 3/4 Coupler, Incl 2 - 7, See Figure 35.204.10 for Installation

1шт.

2

84335912

INSTRUCTION

Installation

1шт.

3

418704A2

COUPLING

Assembly, Mega Flow, Scraper Units, Incl 2 - 4

1шт.

4

418705A1

COUPLING

Manifold, Mega Flow

1шт.

5

84318358

COUPLING

3/4 Auxiliary Coupler, Inc. 4

2шт.

6

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

7

334216A1

CAP

Dust

2шт.
