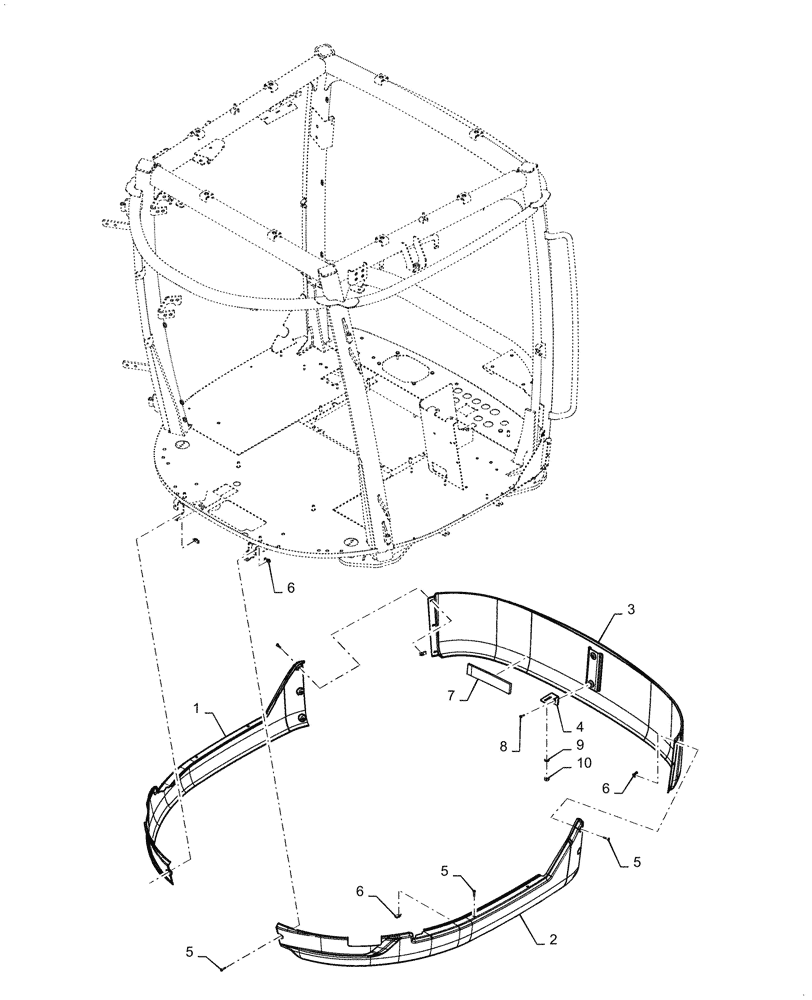

Запчасти Case IH STEIGER 450 (90.150.05[03]) - CAB SKIRT, DELUXE CAB, NON SUSPENDED (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84598198

SKIRT COVER

LH

1шт.

2

84598200

SKIRT COVER

RH

1шт.

3

84598232

COVER

Rear, Assy

1шт.

4

84362939

BRACKET, SUPPORTING

Skirt

1шт.

5

47447686

SCREW,Phillips Drive, Pan HD, M6 x 25mm, Cl 4.8

12шт.

6

404882A1

SPRING NUT,M6

12шт.

7

403325A2

FOAM,30mm x 50mm x 250mm

4шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.
