(05-03) - TRANSMISSION CONTROL ASSEMBLY, WITH POWER SHIFT TRANSMISSION

Запчасти Case IH STEIGER 485 (05-03) - TRANSMISSION CONTROL ASSEMBLY, WITH POWER SHIFT TRANSMISSION (05) - STEERING

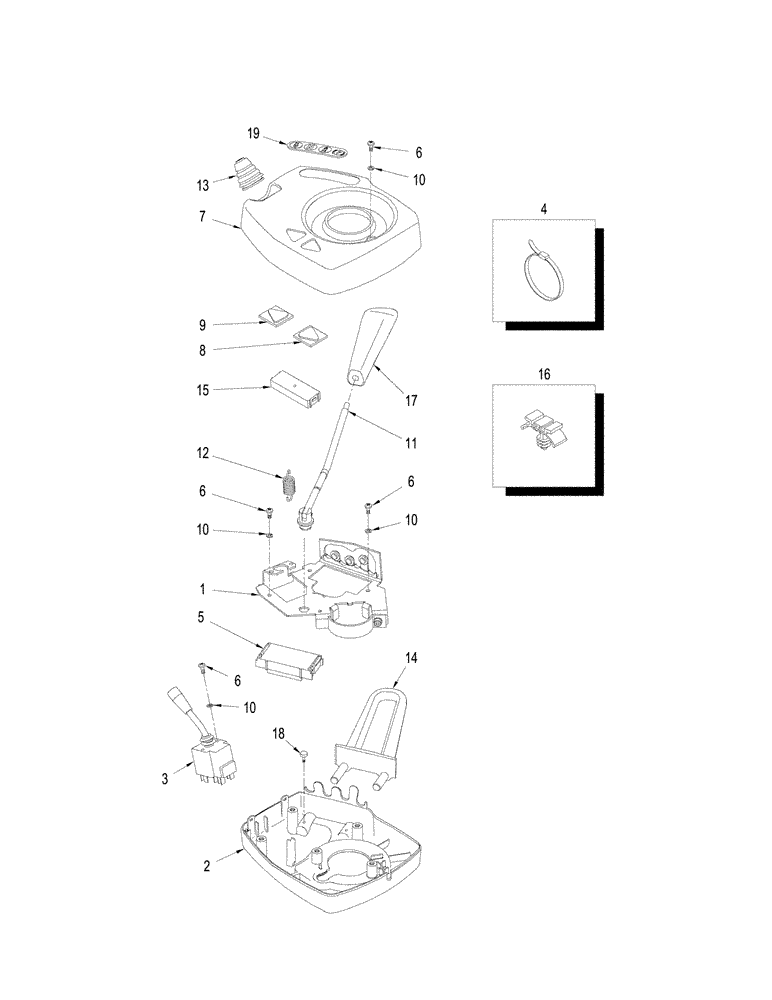

Схема запчастей Case IH STEIGER 485 - (05-03) - TRANSMISSION CONTROL ASSEMBLY, WITH POWER SHIFT TRANSMISSION (05) - STEERING
7
15
10
9
10
2
10
16
18
6
6
13
5
6
8
10
12
3
19
14
6
1
4
17
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

86993721

CONSOLE

Transmission, Inc. 1 - 3, 5 - 15, 17 - 19

1шт.

With Self Cancel

1шт.

1

325362A1

CHASSIS

Transmission Control

1шт.

2

325065A1

HOUSING

Lower

1шт.

3

284777A1

SWITCH

Turn Signal

1шт.

With Self Cancel

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

5

447256A2

SWITCH

FNRP

1шт.

5

84166771R

REMAN ELECT CONTROL

If Part Number 84166771R is Substituted for 447256A2, Harness 84180381 Must Also Be Ordered.

1шт.

5

84166771C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

7шт.

7

325064A1

HOUSING

Upper

1шт.

8

303466A1

SYMBOLS

SYMBOL RH Turn Signal

1шт.

9

303467A1

SYMBOLS

SYMBOL LH Turn Signal

1шт.

10

892-11004

LOCK WASHER,M4

7шт.

11

325363A1

LEVER

FNRP

1шт.

12

250939A1

SPRING

1шт.

13

325068A1

BELLOWS

1шт.

14

325066A2

GUARD

1шт.

15

303465A2

LAMP,12V, 2W

Flasher

1шт.

16

392699A1

FASTENER

1шт.

17

325533A1

HANDLE

FNRP

1шт.

18

905974R1

SELF-TAP SCREW,Pan Hd, M2.9 x 13

2шт.

19

358353A1

SYMBOLS

SYMBOL FNRP

1шт.
