(02-50) - TURBOCHARGER - COMPOUND, STEIGER 485

Запчасти Case IH STEIGER 485 (02-50) - TURBOCHARGER - COMPOUND, STEIGER 485 (02) - ENGINE

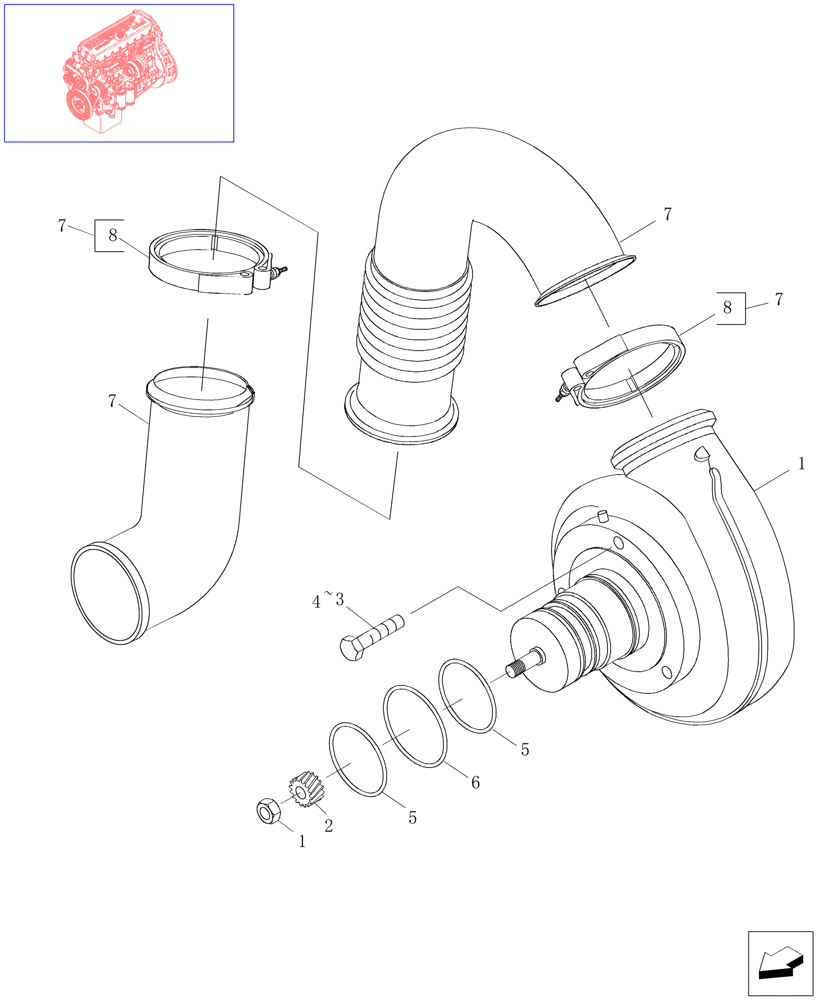

Схема запчастей Case IH STEIGER 485 - (02-50) - TURBOCHARGER - COMPOUND, STEIGER 485 (02) - ENGINE
7
8
3
5
5
6
2
8
7
4
1
7
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504005338

TURBOCHARGER

Compound, Serial Range: subs-504371041

1шт.

1

5801562063R

REMAN-TURBOCHARGER

Compound, Serial Range: subs-504371041

1шт.

1

5801562063C

CORE-TURBOCHARGER

Return Part Number, Serial Range: subs-504371041

1шт.

2

504170759

GEAR

1шт.

3

16587625

BOLT,M10 x 50mm

M10X50 mm

2шт.

4

16676734

SCREW

1шт.

5

70931290

O-RING,-231, Cl 8, 2.609" ID x .139" Thk

2шт.

6

14465381

O-RING,3.109" ID x 3.387" OD x 0.139"

1шт.

7

504170893

AIR INTAKE TUBE

Air Duct

1шт.

8

500339542

COLLAR CLAMP

Pipe, Compound Turbo

2шт.
