(02-78) - HARNESS - ENGINE ELECTRIC, STEIGER 485

Запчасти Case IH STEIGER 485 (02-78) - HARNESS - ENGINE ELECTRIC, STEIGER 485 (02) - ENGINE

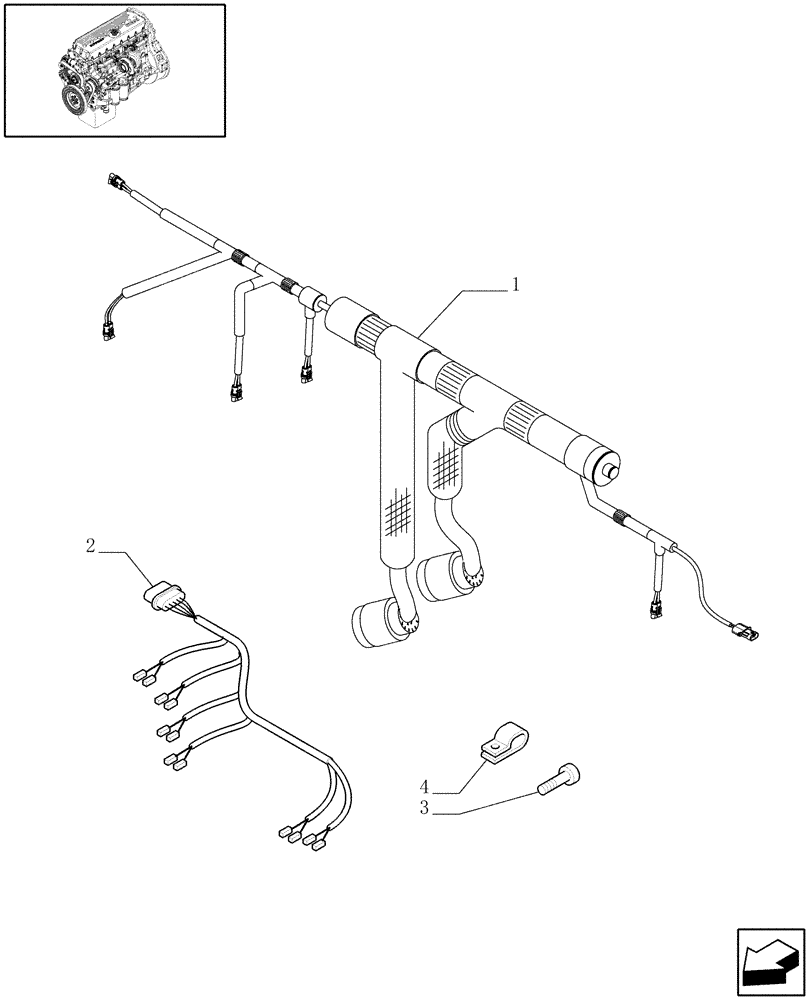

Схема запчастей Case IH STEIGER 485 - (02-78) - HARNESS - ENGINE ELECTRIC, STEIGER 485 (02) - ENGINE
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504217580

HARNESS

Main Engine

1шт.

Fuel Temperature, Engine Speed Sensor (Flywheel), Engine Speed Sensor (Camshaft), Coolant Temperature, Boost Pressure/Air Temperature, Oil Pressure/Temperature

1шт.

2

504149937

WIRE HARNESS

Fuel Injector

1шт.

3

11612224

SCREW

M6 x 12

5шт.

3

16689424

SCREW,M6 x 30mm

4шт.

4

17310001

CLAMP

D=4

1шт.

4

17310401

CLAMP

D=8

3шт.

4

17310501

CLAMP

D=10

1шт.
