(55.518.BL[01]) - WINDSHIELD WIPER HARNESS - WASHER BOTTLE

Запчасти Case IH STEIGER 500 (55.518.BL[01]) - WINDSHIELD WIPER HARNESS - WASHER BOTTLE (55) - ELECTRICAL SYSTEMS

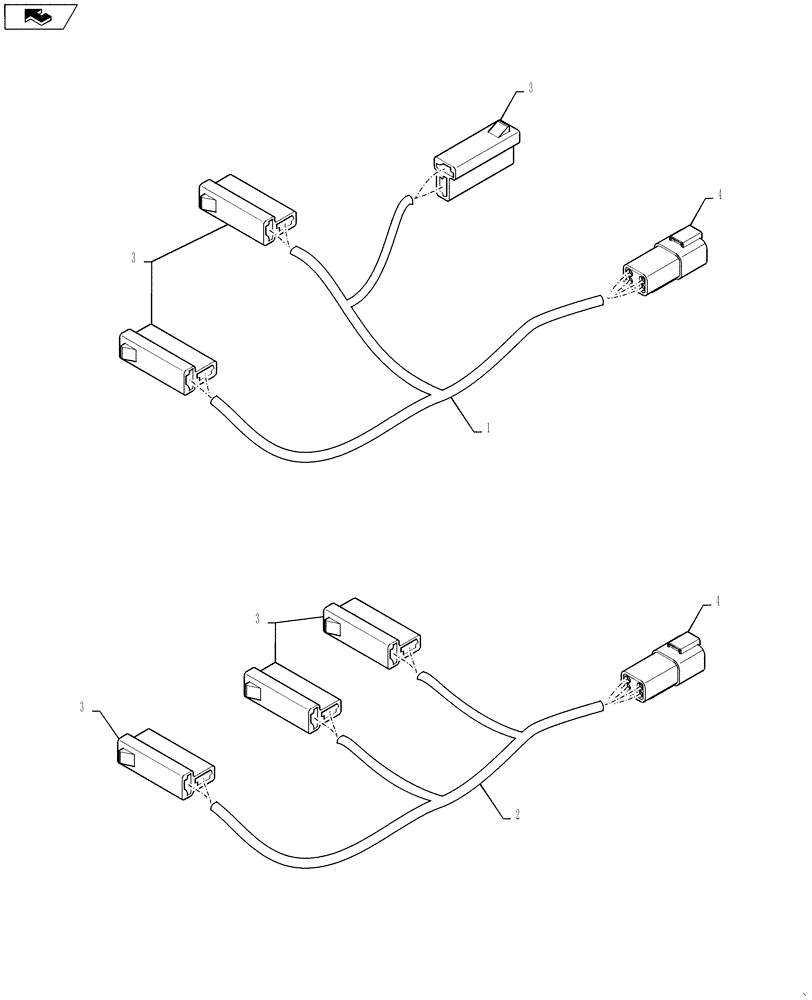

Схема запчастей Case IH STEIGER 500 - (55.518.BL[01]) - WINDSHIELD WIPER HARNESS - WASHER BOTTLE (55) - ELECTRICAL SYSTEMS
3
3
3
4
3
home
3
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84297600

HARNESS

Washer Bottle, Wheeled - Incl 3 - 4

1шт.

2

84486990

WIRE HARNESS

Washer Bottler, Row Trac - Incl 3 - 4

1шт.

3

877291R1

ELEC CONNECTOR,Female

Front, Front Lower, & Rear Washer Pumps, (C143, C144, C145)

3шт.

4

225326C1

ELEC CONNECTOR,Male, 4 Pin

To Front Frame Harness, (C148F)

1шт.
