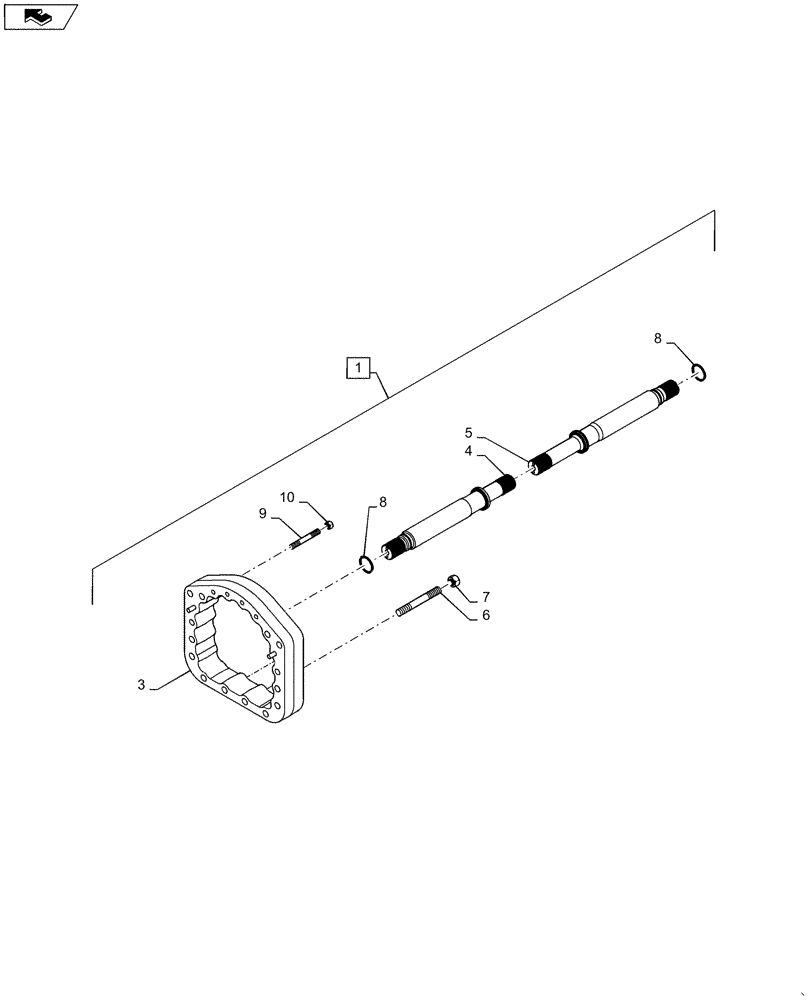

Запчасти Case IH STEIGER 500 (88.023.01) - DIA KIT, ADDITIONAL PRODUCTS - 88 IN TREAD SPACER KIT (88) - ACCESSORIES

1

47357684

SERVICE KIT

DIA KIT - 88 IN Tread Setting - Incl 2 - 12 (Order thru Wholegoods)

1шт.

2

47357688

INSTRUCTION

Installation (Not Shown)

1шт.

3

47448317

SPACER

88 In w/ Dowels

4шт.

4

84467442

AXLE,671.6mm L

88 IN - RH

2шт.

5

84467443

SHAFT,763.7mm L

88 In - LH

2шт.

6

84536429

STUD

M24 x 3 x 220mm Length

48шт.

7

829-1324

NUT

M24

48шт.

8

84557164

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

3.55 x 56.7 CL 5 (2-228)

4шт.

9

84466800

SEAL

Oil, Axle Beam - Upbox (Not Shown)

4шт.

10

47426282

GUARD

Hose

4шт.
