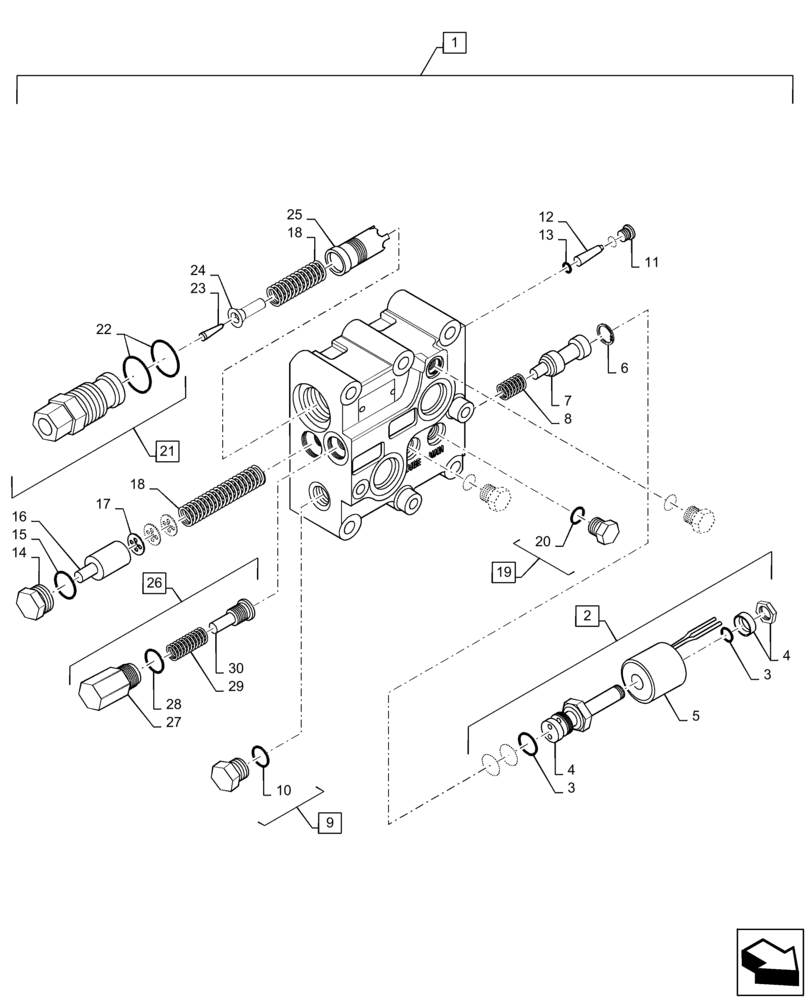

Запчасти Case IH STEIGER 540 (21.135.AQ[02]) - TRANSMISSION REGULATOR CONTROL VALVE, BSN ZFF308000 (21) - TRANSMISSION

1

47479826

VALVE

Transmission Regulator, Incl 2 - 30

1шт.

1

47479826R

REMAN-HYD VALVE

Reman Transmission Regulator, Incl 2 - 30

1шт.

1

47479826C

CORE-VALVE HYD

Core Return Number

1шт.

2

371737A1

SOLENOID VALVE

3 Way, Incl 3 - 5

1шт.

2

371737A1R

REMAN-SOLENOID

3 Way, Incl 3 - 5

1шт.

2

371737A1C

CORE-SOLENOID

Return Number

1шт.

3

371738A1

O-RING KIT

Orings

1шт.

4

370600A1

SOLENOID VALVE

Cartridge

1шт.

5

371739A1

COIL

Solenoid

1шт.

6

428679A1

RING, SNAP

Retaining

1шт.

7

370597A1

SPOOL

Lube

1шт.

8

370596A1

SPRING

Lube

1шт.

9

220066A1

PLUG,M18 x 1.5, ORB

Incl 10

1шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

428678A1

PLUG

Hex Socket

1шт.

12

428677A1

FILTER

Conical

1шт.

13

428676A1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

Filter

1шт.

14

87431407

PLUG

Lube

1шт.

15

87431408

O-RING

Plug

1шт.

16

47402733

VALVE

Spool, Lube

1шт.

17

398445A1

SHIM,0.79mm Thk

Lube Pressure

1шт.

18

47496084

SPRING

Control Pressure

2шт.

19

220064A1

PLUG,M14 x 1.5, ORB

Incl 20

3шт.

20

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

21

47489165

VALVE, PRESSURE CONT

Pilot, Incl 22

1шт.

22

87350407

KIT

Orings, Pilot Control Valve

1шт.

23

87362229

FILTER SCREEN

Oil

1шт.

24

87350417

FILTER COVER

Housing

1шт.

25

87350419

SPOOL

Main Pressure

1шт.

26

84314761

BY-PASS VALVE

Incl 27 - 30

1шт.

27

84314762

VALVE

By-Pass

1шт.

28

84314796

O-RING

By-Pass

1шт.

29

87431406

VALVE SPRING

By-Pass

1шт.

30

84314768

VALVE

Poppet, By-Pass

1шт.
