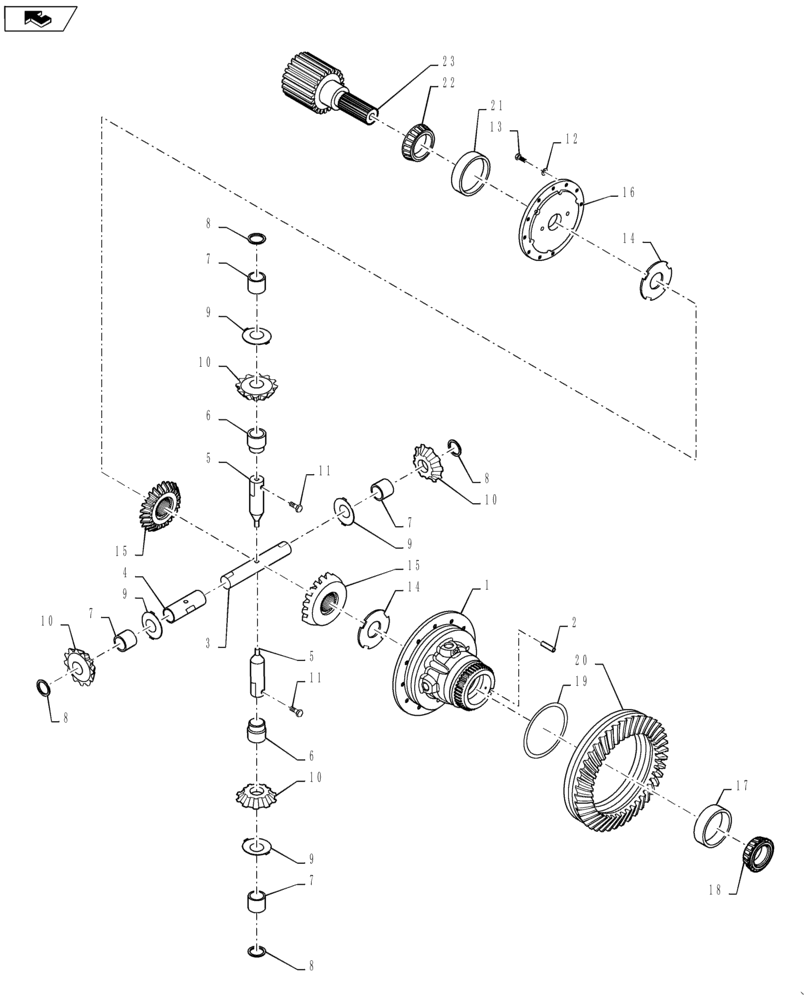

Запчасти Case IH STEIGER 600 (25.100.23) - 600 SERIES AXLE - DIFFERENTIAL, WITHOUT DIFFERENTIAL LOCK - STEIGER 550HD & 600, QUADTRAC 550 & 600 (25) - FRONT AXLE SYSTEM

1

87471363

DIFFERENTIAL ASSY

Without Diff Lock, Incl 2

1шт.

2

87520606

PLUG

10mm

1шт.

3

92907C1

SHAFT

Pinion, Long

1шт.

4

1289349C1

SPACER

Long Pinion

1шт.

5

92906C1

SHORT SHAFT

Pinion

2шт.

6

1289350C1

SPACER

Short Pinion

2шт.

7

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

8

1289348C1

RING

Retaining

4шт.

9

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

10

92905C1

PINION

4шт.

11

1997421C1

BOLT

Cross Pin

2шт.

12

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

13

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

14

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

2шт.

15

1259633C3

GEAR

Bevel, 20T

2шт.

16

84141229

COVER ASSY

Differential Case, No Lock

1шт.

17

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

18

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

19

148939C1

SEALING RING,OD 200.60 mm

1шт.

20

87522606

GEAR SET

Pinion Shaft and Gears, Front Axle, (Pinion Shaft Not Shown)

1шт.

20

87522604

GEAR SET

Pinion Shaft and Gears, Rear Axle, (Not Shown)

1шт.

21

84160921

TAPERED BEARING

1шт.

22

84351353

SUN GEAR

Shaft, Short, Wheeled

1шт.

22

279844A2

SHAFT,271mm L

Sun Gear, Short, Quadtrac

1шт.
